CHS vacuum dispersion system

FLEXIBLE. POWERFUL. INNOVATIVE. Modular vacuum system with a mobile vacuum chamber

Product
2 - 45 litres

The CHS vacuum accessory can be used with containers from 7 ‒ 60 litres. The system comprises of three parts: dissolver shaft and vacuum cover, the outer vacuum chamber and a moveable base. The customers own more

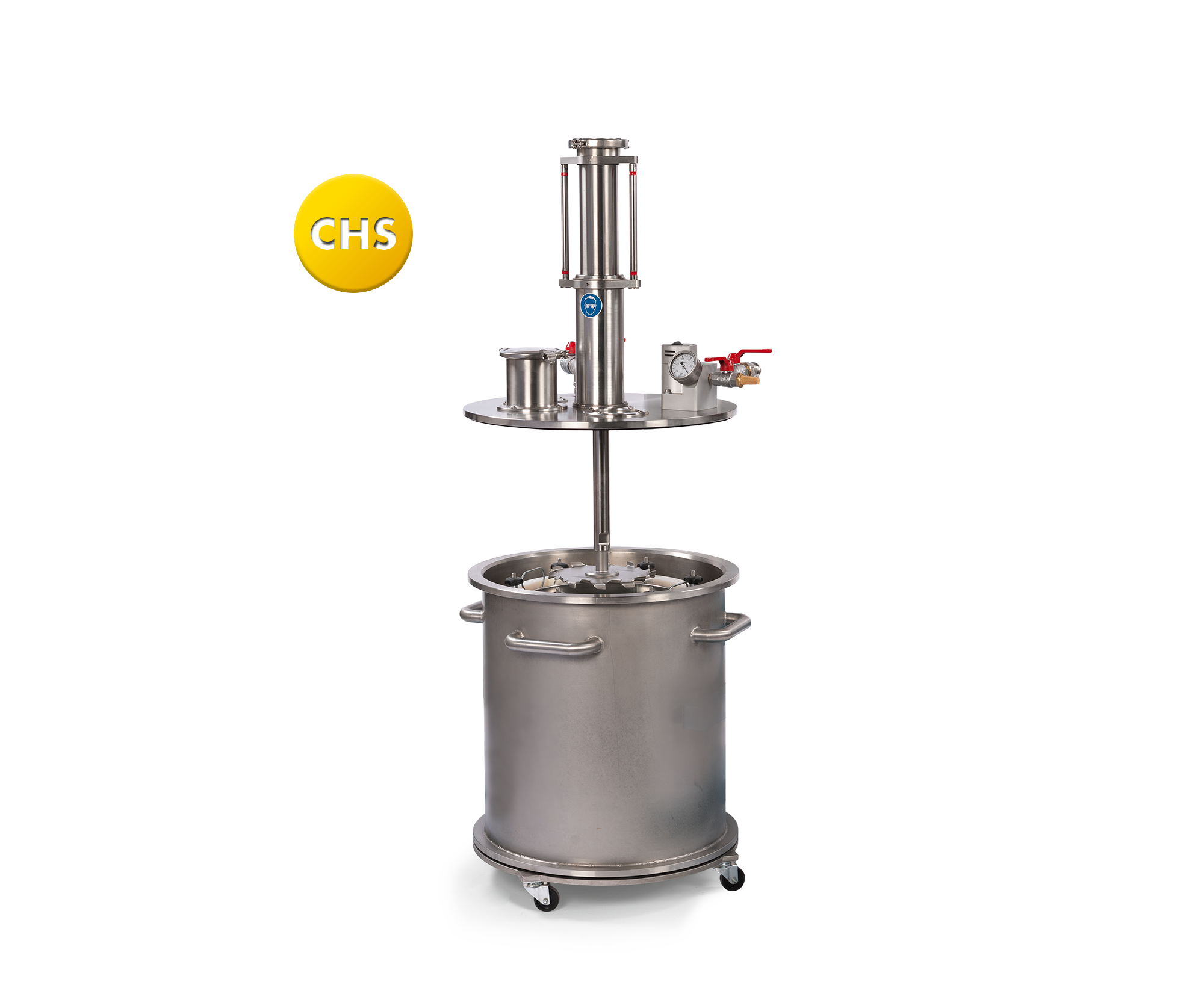

Modular CHS vacuum dispersion system with a mobile vacuum chamber for single‒walled steel containers, hobbocks and customized dispersion containers.

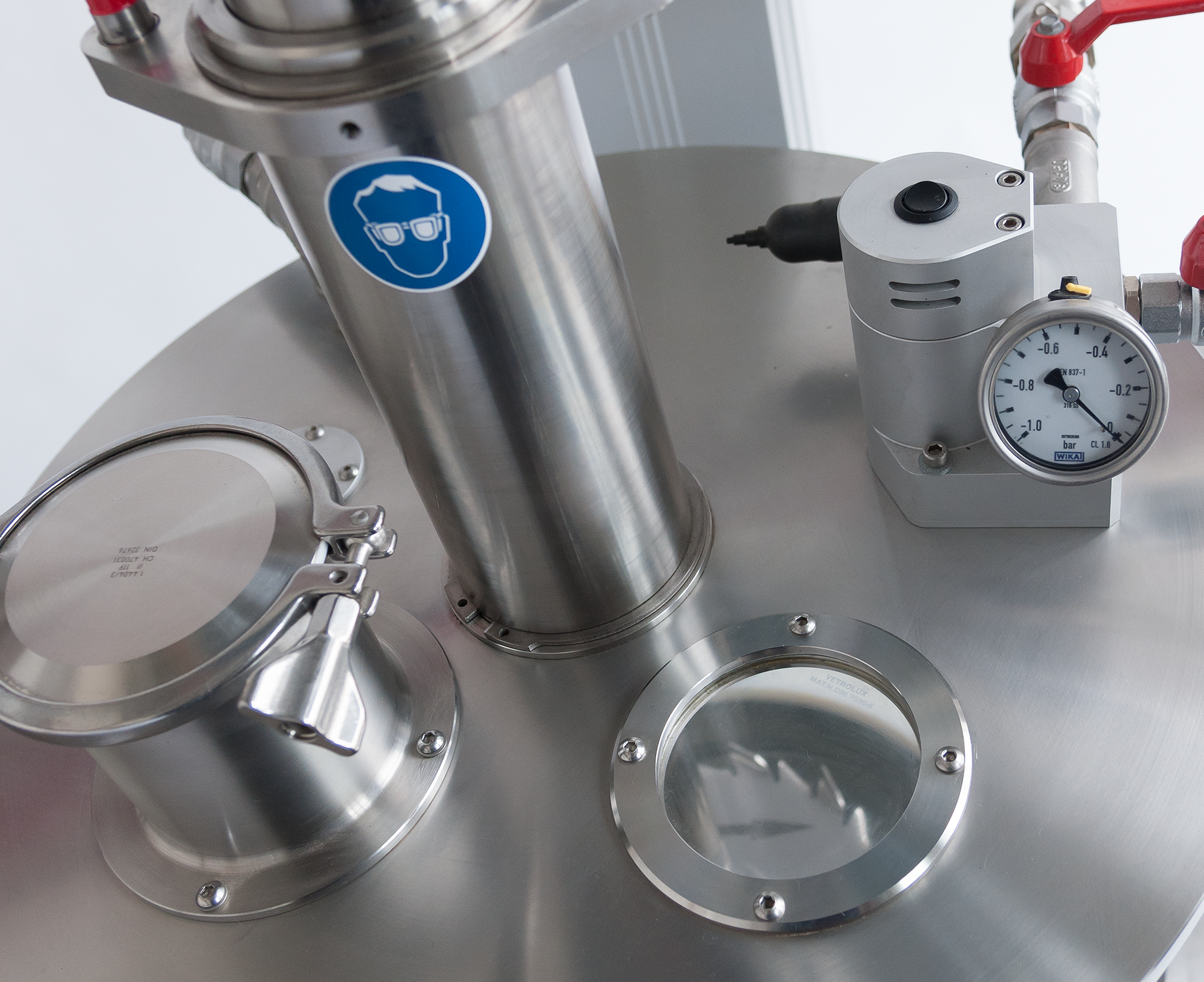

The CHS vacuum accessory can be used with containers from 7 ‒ 60 litres. The system comprises of three parts: dissolver shaft and vacuum cover, the outer vacuum chamber and a moveable base. The customers own container is simply secured in position on the moveable base and the vacuum chamber placed onto the base. The base can be moved under the dissolver and the vacuum cover lowered into position. To optimise the product flow during operation the dissolver disc height is fully adjustable. There is a powerful LED lamp and a viewing window. For high‒viscosity and non‒flowing materials an optional high torque scraper system is available. Product temperature can be continuously measured with a PT100 temperature sensor (optional). The highly flexible CHS vacuum system can also be used for stirring, mixing, homogenizing and fine grinding applications. The unique CHS concept means that there is no container cleaning required between batches, saving time and increasing productivity. The CHS30 system will accept standard hobbock type 30 litres thin wall containers. It is also available in a larger 60 litres size as well as customer specific sizes. An ATEX certified explosion‒proof design is also available.

CHS vacuum system
type
Container capacity
litre
Product volume
litre
CHS30 vacuum system 7 – 30 2 – 20
CHS60 vacuum system 15 – 60 4 – 45
CHS vacuum system
type
Recommended DISPERMAT® dissolvers
type
CHS30 vacuum system CN50 – CN120 ║ AE07 – AE14 ║ AE07-EX – AE13-EX
CHS60 vacuum system CN90 – CN120 ║ AE11 – AE14 ║ AE11-EX – AE13-EX
