Description

Dispersion under vacuum with the modular CDS dispersion system

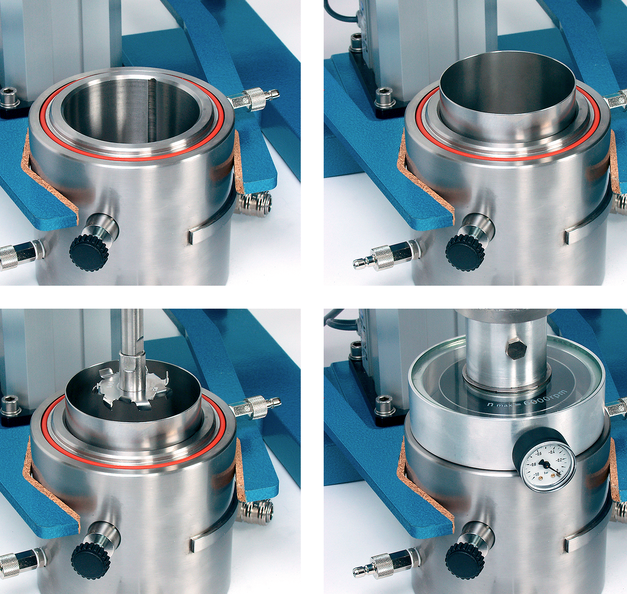

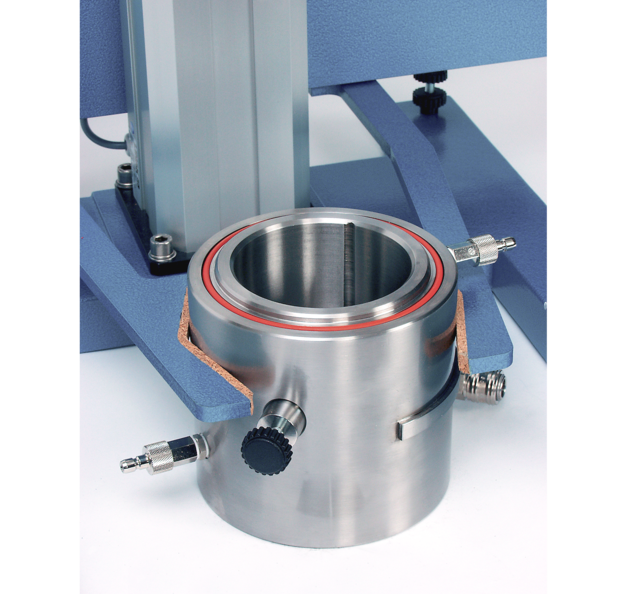

The CDS dispersion system enables the dispersion process to be carried out in single‒walled containers in a closed system under vacuum. The single‒walled containers are placed into the container holder and secured in place. If the dispersion process needs to be cooled a double‒walled container holder is available. After the liquid and powder components have been added, the glass cover can be lowered onto the container holder over the vacuum shaft guide tube.

The actual dispersion process can now be run and the product is set into a turbulence free rolling motion. If vacuum is required the vacuum pump can be switched on. The impeller height can easily be raised or lowered during the dispersion process even under vacuum. The dispersion process can be observed clearly through the large glass cover. The CDS system can be equipped with a particularly bright LED light as well as an integrated infrared temperature measurement system.

Vacuum dispersion system with single‒ or double‒walled holder with a glass cover

CDS vacuum system Container capacity Container Ø x height Product volume
CDS250 vacuum system
0.25 liters
8.5 oz
65 x 85 mm
2.6 x 3.3 inch
0.1 – 0.2 liters
3.4 oz – 6.8 oz
CDS500 vacuum system
0.5 liters
16.9 oz
80 x 100 mm
3.1 x 3.9 inch
0.2 – 0.3 liters
6.8 oz – 10.1 oz
CDS1000 vacuum system
1 liters
1.1 qt
100 x 130 mm
3.9 x 5.1 inch
0.3 – 0.7liters
10.1 oz – 23.7 oz
CDS2000 vacuum system
2 liters
2.1 qt
120 x 180 mm
4.7 x 7.1 inch
0.6 ‒ 1.4liters
20.3 oz – 1.5 qt
CDS3000 vacuum system
3 liters
3.2 qt
140 x 200 mm
5.5 x 7.9 inch
0.9 ‒ 2.1liters
1 qt – 2.2 qt
CDS5000 vacuum system
5 liters
1.3 gallons
180 x 200 mm
7.1 x 7.9 inch
1.5 ‒ 3.5 liters
1.6 qt – 3.7 qt

Vacuum dispersion system with single‒ or double‒walled containers with an aluminium cover

CDS vacuum system Container capacity Container Ø x height Product volume
CDS10000 vacuum system
10 liters
2.6 gallons
240 x 240 mm
9.4 x 9.4 inch
3 ‒ 7 liters
3.2 qt – 1.8 gallons
CDS20000 vacuum system
20 liters
5.3 gallons
280 x 280 mm
11 x 11 inch
6 ‒ 14 liters
1.6 – 3.7 gallons
CDS25000 vacuum system
25 liters
6.6 gallons
320 x 320 mm
12.6 x 12.6 inch
8 ‒ 20 liters
2.1 – 5.3 gallons
CDS vacuum system
type
Recommended DISPERMAT® dissolvers
type
CDS250 vacuum system LC55 – LC220-6 ║ CV3evo ║ CN10 – CN40 ║ CA ║ AE01 – AE06 ║ LC-EX ║ AE01-EX – AE06-EX ║ R30
CDS500 vacuum system LC55 – LC220-6 ║ CV3evo ║ CN10 – CN40 ║ CA ║ AE01 – AE06 ║ LC-EX ║ AE01-EX – AE06-EX ║ R30
CDS1000 vacuum system LC55 – LC220-6 ║ CV3evo ║ CN10 – CN40 ║ CA ║ AE01 – AE06 ║ LC-EX ║ AE01-EX – AE06-EX ║ R30
CDS2000 vacuum system LC110-06 – LC220-6 ║ CN10 – CN40 ║ CA20 – CA40 ║ AE01 – AE06 ║ LC75-EX ║ AE01-EX – AE06-EX
CDS3000 vacuum system LC110-12 – LC220-6 ║ CN10 – CN80 ║ CA20 – CA40 ║ AE01 – AE06 ║ AE01-EX – AE06-EX
CDS5000 vacuum system LC110-12 – LC220-6 ║ CN ║ CA20 – CA40 ║ AE01 – AE06 ║ AE01-EX – AE06-EX
CDS10000 vacuum system LC110-12 – LC220-6 ║ CN ║ CA40 ║ AE ║ AE-EX
CDS20000 vacuum system LC110-12 – LC220-6 ║ CN ║ AE03 – AE14 ║ AE03-EX – AE13-EX
CDS25000 vacuum system LC220-6 – LC220-6 ║ CN40 – CN120 ║ AE06 – AE14 ║ AE06-EX – AE13-EX
