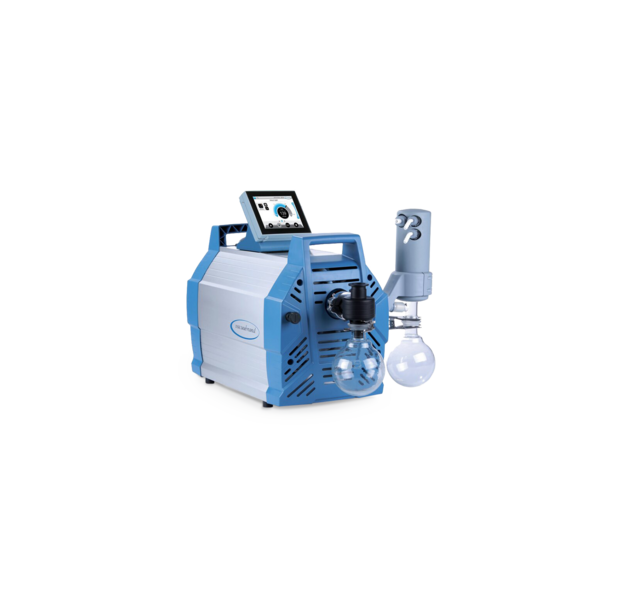

Vacuum pump PC 3012 VARIO select

Advanced vacuum pump with an integrated controller

Advanced vacuum pump with an integrated controller

Advanced vacuum pump with an integrated controller for exact control of the desired vacuum. This especially compact and light device ensures high evaporation rates for short process times and is equipped with a condensate separator on the suction and pressure side.



Special benefits:

  • Easy‒to‒operate vacuum controller
  • Fully automatic operation: the optimum demand based vacuum at the push of a buttons
  • Uniformly high vacuum, shorter process times
  • Very compact and light design
  • Very low‒noise and low‒vibration operation
  • Condensate separator on the suction and pressure side



Recommended for:

  • DISPERMAT® VE
  • DISPERMAT® VL50-100
  • DISPERMAT® CHS
Vacuum pump PC 3012 VARIO select
Suction capacity (at 60 Hz) 15 m3/h
Final vacuum, absolute 1.5 mbar
Voltage supply 230 V, 50-60Hz
Sound pressure level 49 dBA
Dimensions L x W x H 616 x 387 x 450
ATEX conformity (230V): II 3/- G IIC T3 X Internal Atm. only
Weight 27 kg
