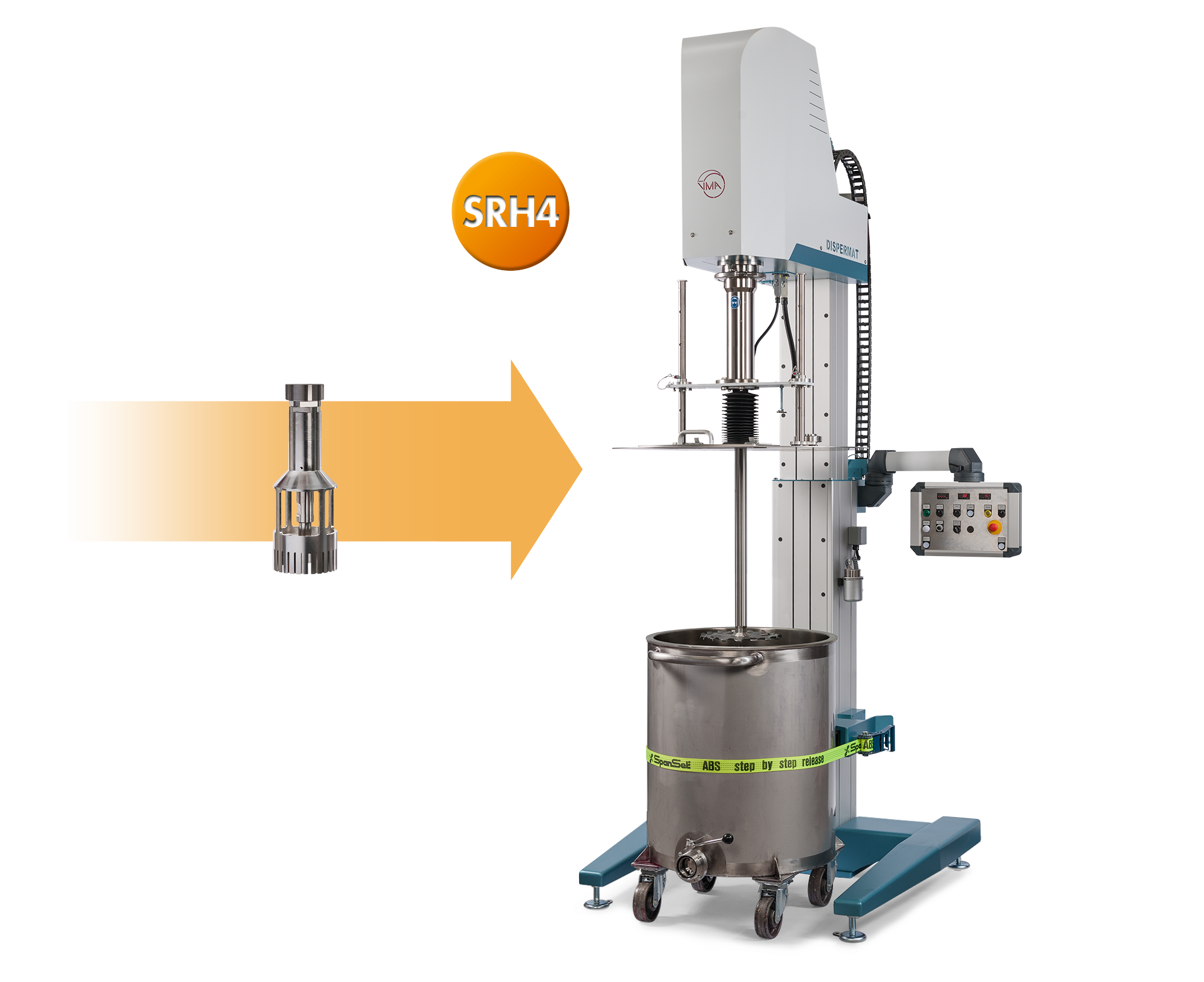

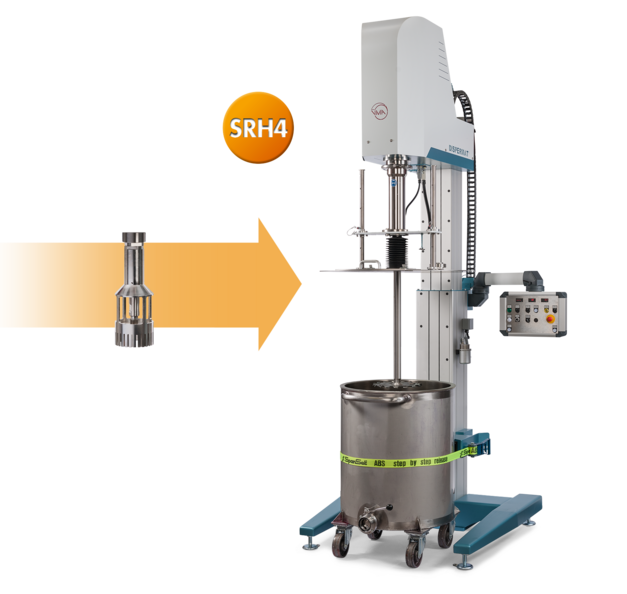

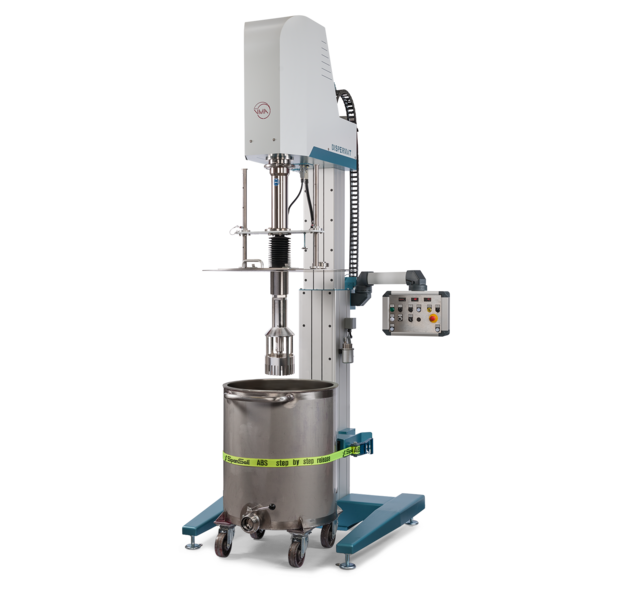

SRH4 rotor-stator homogenizer

FLEXIBLE. POWERFUL. INNOVATIVE. Modular high shear mixer for DISPERMAT® production dissolvers

Product
30 - 600 litres

The SRH4 rotor‒stator accessory turns a DISPERMAT® production dissolver into a high shear batch process homogenizer. The SRH4 high shear mixer is a highly efficient, zero maintenance and easy‒to‒clean more

Modular rotor-stator homogenizer for product quantities from 30 to 600 liters

The SRH4 rotor‒stator accessory turns a DISPERMAT® production dissolver into a high shear batch process homogenizer. The SRH4 high shear mixer is a highly efficient, zero maintenance and easy‒to‒clean accessory. Low‒viscosity fluids are drawn into the narrow gap between the rotor and stator where the mechanical energy input is at its highest. The DISPERMAT® production dissolvers have powerful and safe drive systems to provide the required shear stresses and flow effects for processing the fluid within a very short time. This short processing time makes sure that the product is not stressed excessively. The infinitely variable speed adjustment allows comfortable work.

Depending on the application such as emulsifying, homogenizing, grinding, mixing and dispersing, different rotor ‒ stator / gap combinations are available. The systems can be removed quickly and easily cleaned.





Highlights SRH4 rotor-stator homogenizer

OPTION: VACUUM DESIGN
<p>DISPERMAT® TECHNOLOGY<br /> dispering under vacuum</p>
OPTION: ATEX
<p>ZONE 0/1/2<br /> explosion protection</p>
MADE IN GERMANY
<p>SINCE 1972<br /> quality, precision &amp; durable technology</p>
High shear mixer
type
Container capacity
litre
Product volume
litre
Recommended DISPERMAT® dissolvers
type
SRH4 rotor stator homogenizer 75 – 750 30 – 600 DISPERMAT® SC4
DISPERMAT® SCA4
DISPERMAT® SCV4
DISPERMAT® SCVA4
DISPERMAT® SC4-EX
DISPERMAT® SCA4-EX
DISPERMAT® SCV4-EX
DISPERMAT® SCVA4-EX
