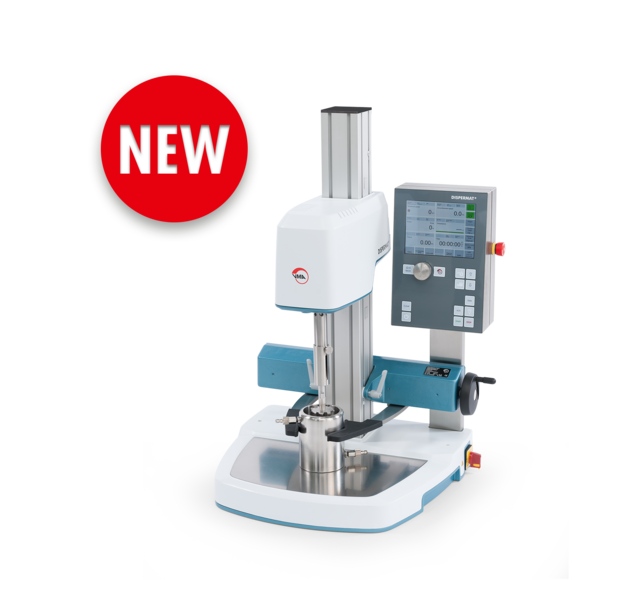

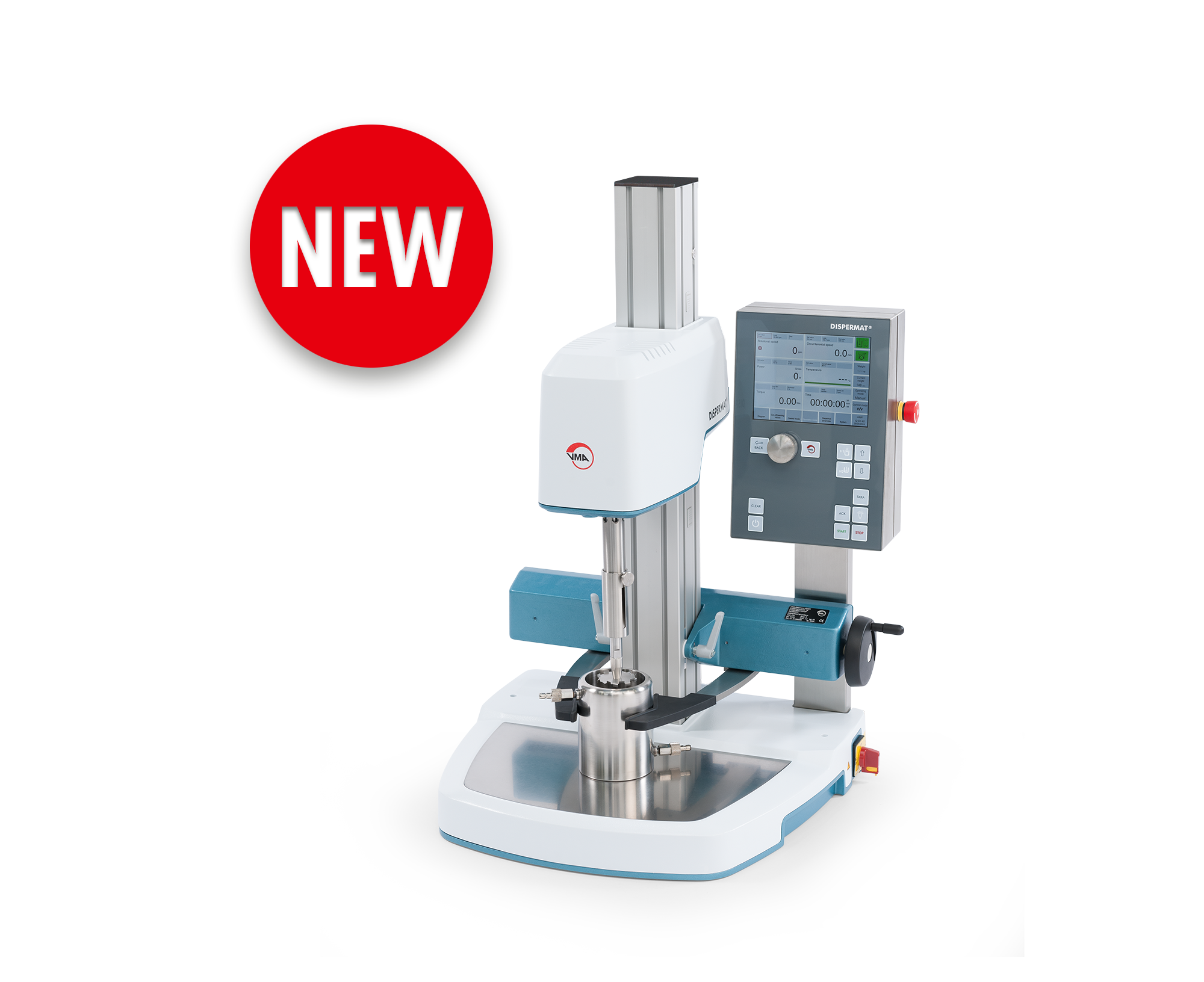

DISPERMAT® CV3evo dissolver
The new, innovative all-rounder for the laboratory
- Power
- 0.75 kW
- Product
- 0.05 - 7 litres
- Control
- CVevo [Comfort]
Description
The new, innovative all-rounder for the laboratory. In ergonomic design with process control and electric height adjustment.
Versatile laboratory dissolver for stirring, dispersing, vacuum dispersing, homogenising and fine grinding.
The DISPERMAT® CV3evo is a completely redesigned laboratory dissolver and impresses with a particularly ergonomic and compact design. It is equipped with an electric height adjustment and can be used for versatile tasks in the laboratory. The controller is situated in the new, high-quality stainless steel housing with an innovative glass panel and can be operated via the integrated, solvent-resistant membrane keyboard. The large colour screen shows all relevant process parameters. Thus the new DISPERMAT® CV3evo combines form and functionality in a new way.
The sturdy central clamping system offers further comfort. With the clamping arms the dispersion container is centrally located and secured safely under the dissolver shaft. The integrated safety package in accordance with the machine directive 2006/42/EC provides reliable protection during the dispersing process. High grade design, certified quality and eliable technology characterise this all‒rounder for the laboratory.
The DISPERMAT® CV3evo dissolver is suitable for multiple tasks in the laboratory and pilot plant:
- Dispersing
- Fine grinding
- Stirring and mixing
- Homogenizing
- Dispersing under vacuum
- Dispersing high‒viscosity substances
- Emulsifying
- Suspension
- Solving
Highlights DISPERMAT® CV3evo dissolver
<p>MODULAR SYSTEMS<br /> Flexible. Powerful. Innovative.</p>
<p>ELECTRIC<br /> easy handling, functional design</p>
<p>TÜV CERTIFIED<br /> Safety module (EN ISO 13849-1)</p>
<p>SPEED ADJUSTMENT<br /> with rotary pulse encoder</p>
<p>DIRECTIVE 2006/42/EC<br /> integrated safety equipment</p>
<p>SINCE 1972<br /> quality, precision & durable technology</p>
Features
| DISPERMAT® type | low‒viscosity up to 500 mPs | medium‒viscosity 500 ‒ 5000 mPs | high‒viscosity over 5000 mPs |
|---|---|---|---|
| Dissolver DISPERMAT® CV3evo | 0.05 – 7 litres 1.7 oz – 1.8 gallons | 0.05 – 5 litres 1.7 oz – 1.3 gallons | 0.05 – 2,5 litres 1.7 oz – 2.6 qt |
| Dissolver DISPERMAT® CVP3evo | 0.05 – 7 litres 1.7 oz – 1.8 gallons | 0.05 – 7 litres 1.7 oz – 1.8 gallons | 0.05 – 4 litres 1.7 oz – 1.1 gallons |
Process control
The dissolver DISPERMAT® CV3evo is fitted with the CV technology
CV technology
Glass panel
High-quality glass front with a large colour display and an integrated, solvent-resistant, backlit membrane keypad.
Colour display
Extra large colour display with indication of speed, torque, power input, product temperature, timer, peripheral speed, height of dispersing tool, status bar with safety indicators, working heights, operating mode, etc.
Timer
Timer function with display of the pre‒selected time as well as the elapsed time. Timer‒controlled switch over to second speed.
DISPERSAFE®
TÜV-certified safety module enbles the use of different container sizes without additional limit switches or mechanical devices.
DISPERWHEEL®
Speed adjustment infinitely variable speed adjustment with rotary pulse encoder.
Height measurement
Adjustable working range for different container sizes. (HA, H1, H2)
Additional options
LED lamp
Switching of a high performance LED lamp to fully illuminate the dispersion process inside the container.
Data recording
Recording of the process parameters with graphical indication.
Switch off parameters
Switch off function for temperature, speed, torque and power.
Database
100 individual PRESET configurations for H1, H2, speed, time, switch off parameters, ramp function, etc.
Power compensation
Net power calibration.
User administration
Create and manage different users.
Scale
Option to connect an external precision scale.
WINDISP©
USB data interface for WINDISP© software for documentation, analysis, research, development and quality control.
Adaptable systems
Flexible. Powerful. Innovative.
Innovation made in Germany: With the modular quick-change systems, the DISPERMAT® CV3evo dissolver can also be used as: APS Bead Mill, TORUSMILL® TML Basket Mill, CDS Vacuum Dispersion System and SR Rotor-Stator Homogenizer .
APS Bead Mill
Modular bead mill for DISPERMAT® dissolvers.
The addition of the modular APS bead mill converts the DISPERMAT® dissolver into a closed batch bead milling system.
APS Bead Mill
TORUSMILL® TML Basket Mill
Modular basket mill for DISPERMAT® dissolvers
The addition of the modular TML basket mill converts the DISPERMAT® dissolver into an extremely efficient fine grinding system.
TORUSMILL® TML Basket Mill
CDS Vacuum Dispersion System
Modular vacuum system for DISPERMAT® dissolvers
The CDS vacuum dispersion system enables the dispersion process in a completely closed system under vacuum.
CDS Vacuum Dispersion System
SR Rotor-Stator Homogenizer
Modular rotor-stator dispersion system
Vertical high-performance rotor-stator systems for homogenizing, emulsifying, dispersing, mixing and dissolving.
SR Rotor-Stator Homogenizer
