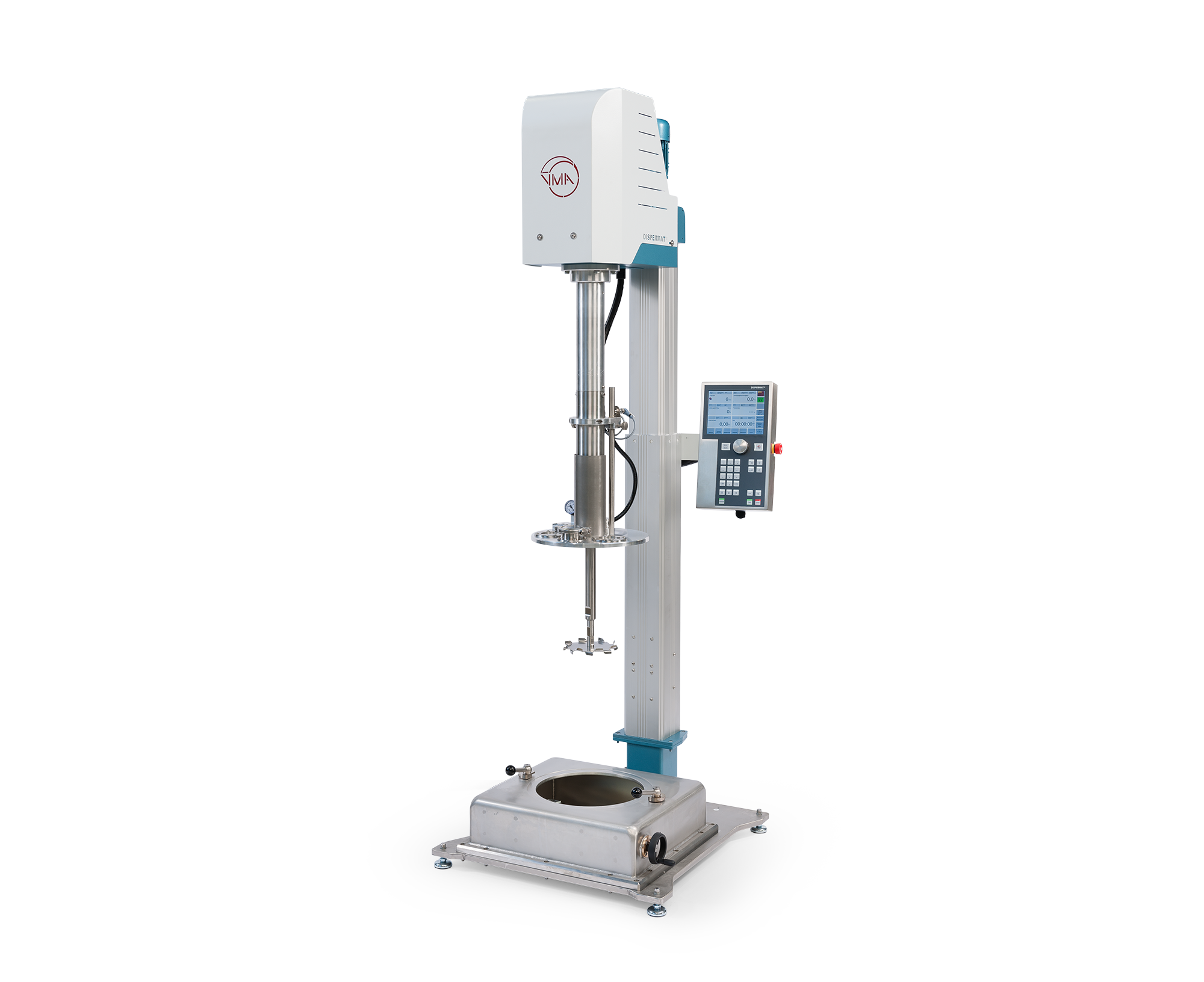

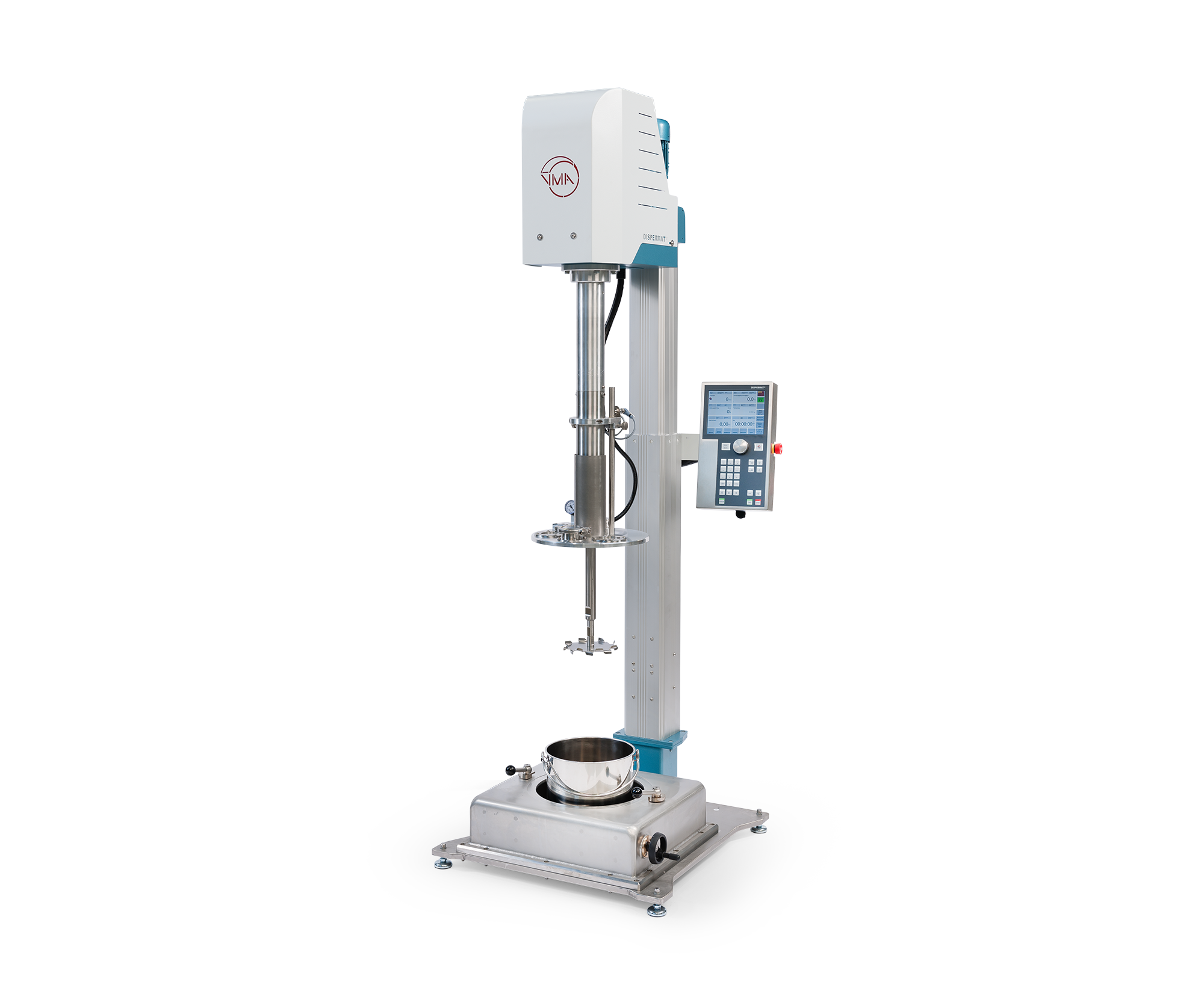

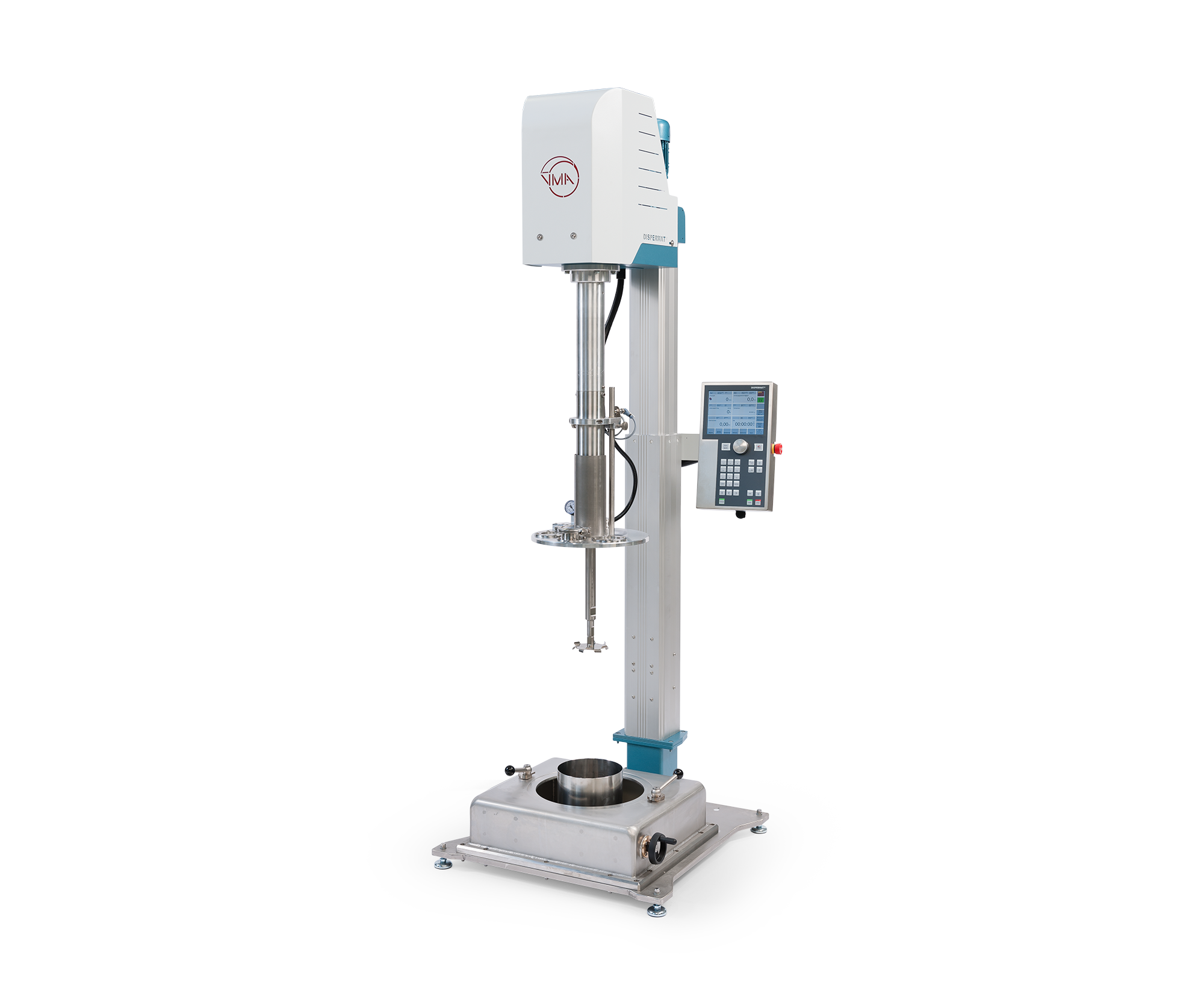

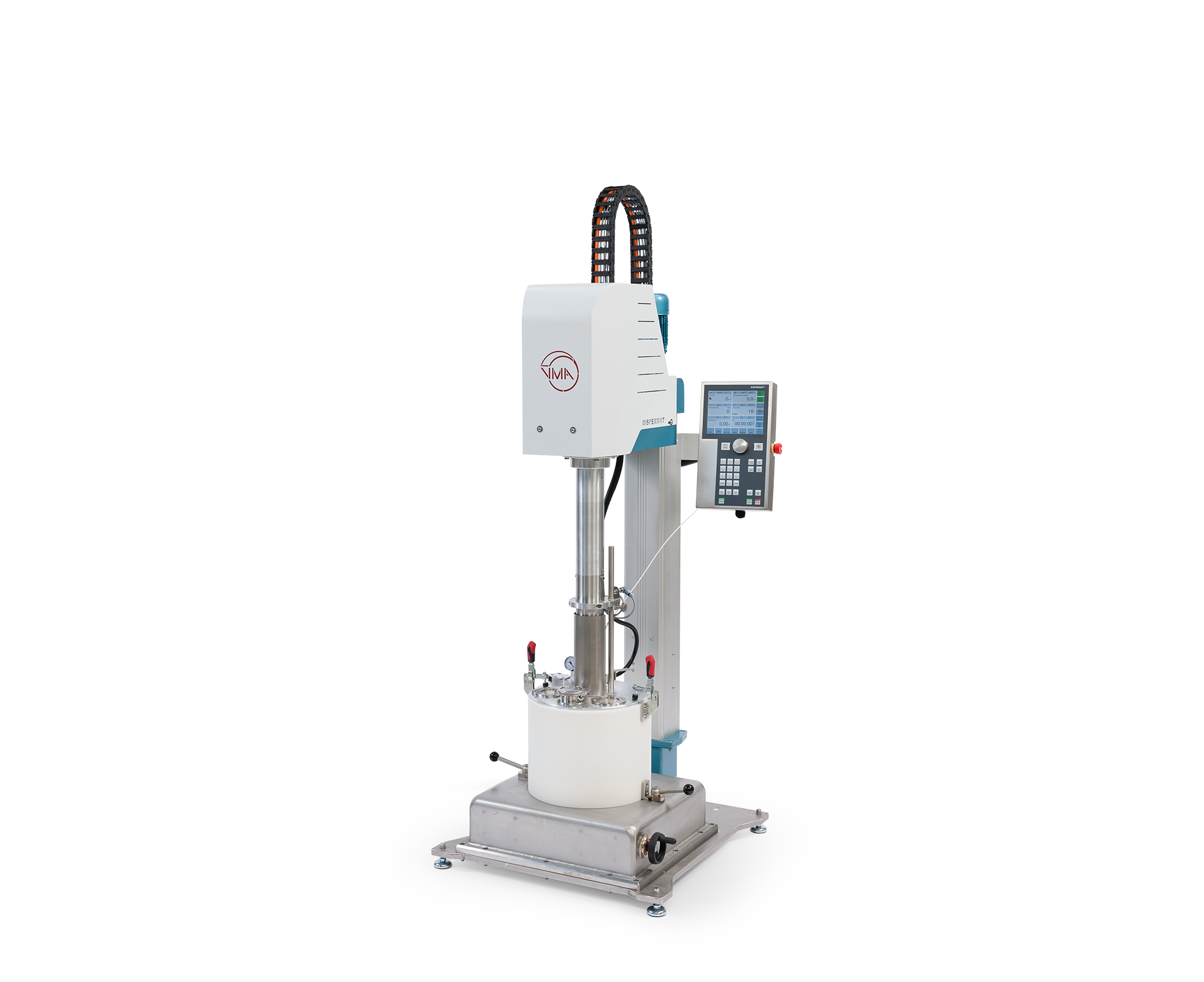

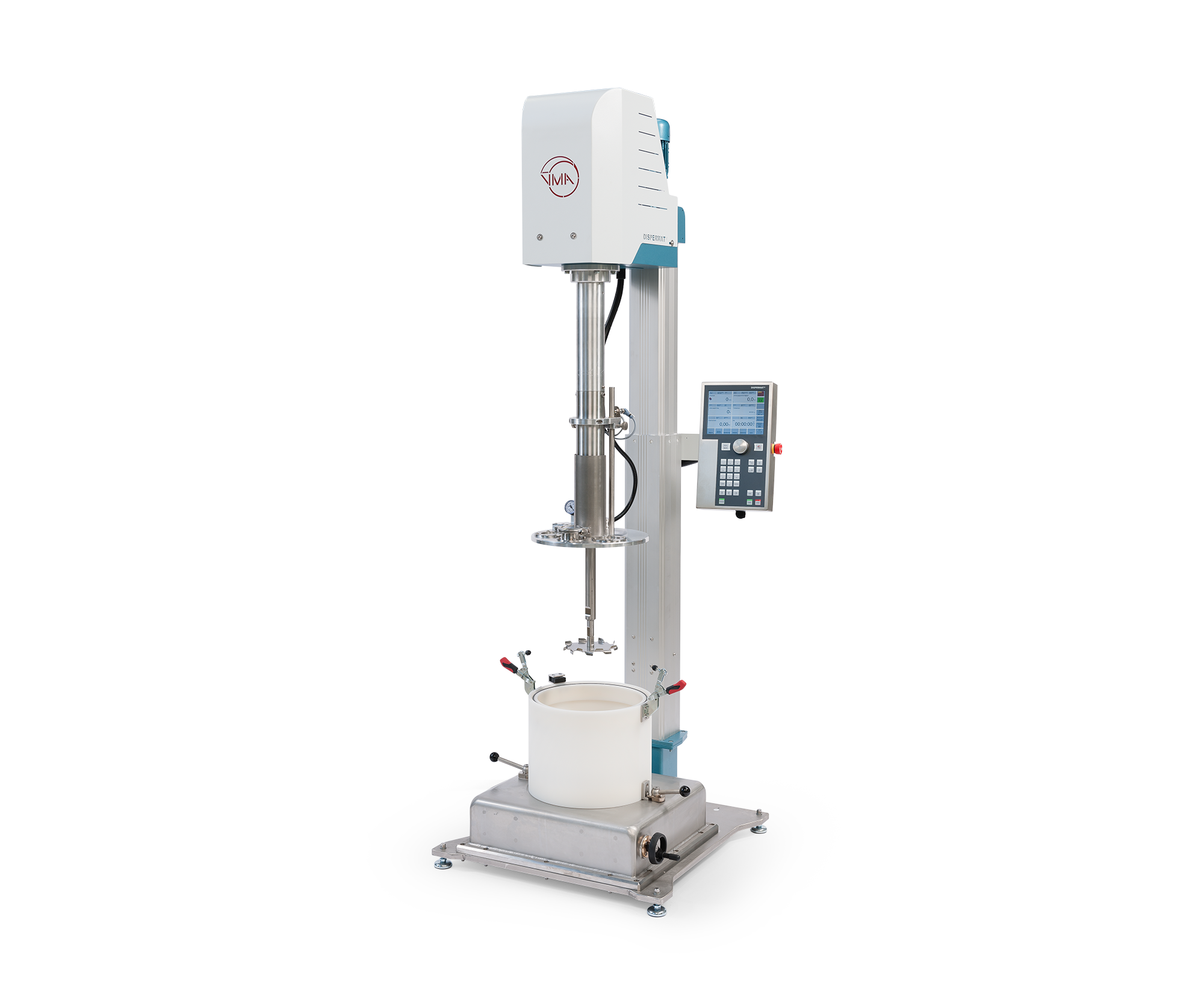

DISPERMAT® VE vacuum dissolver

Dispersion under vacuum with various containers in a vacuum chamber

Power
2.2 kW
Product
0.2 - 7 Liter
Control
C [Comfort]

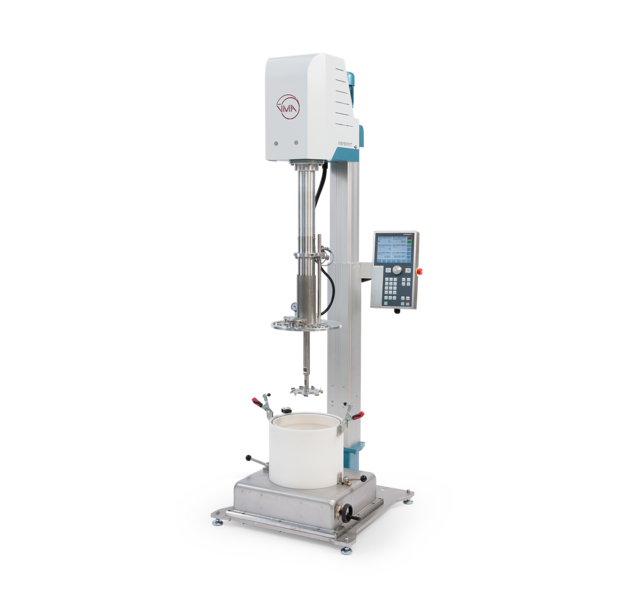

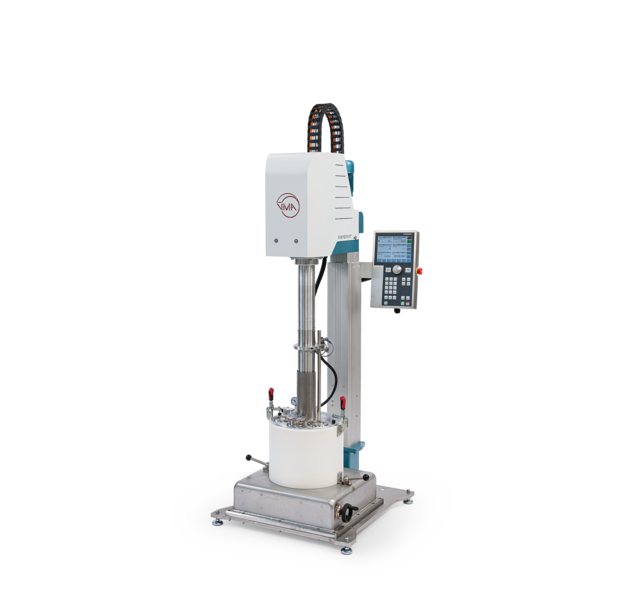

The DISPERMAT® VE is a vacuum dissolver which is suitable both for laboratory applications and for larger batches. The special feature of the DISPERMAT® VE is that it is not necessary to fill the product to more

The DISPERMAT® VE is a vacuum disperser for single‒walled and double‒walled containers as well as disposable containers with a capacity of 0.25 to 10 litres

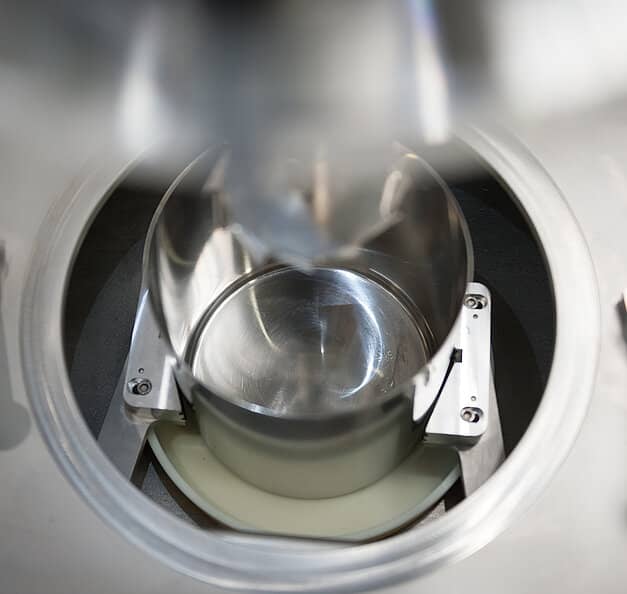

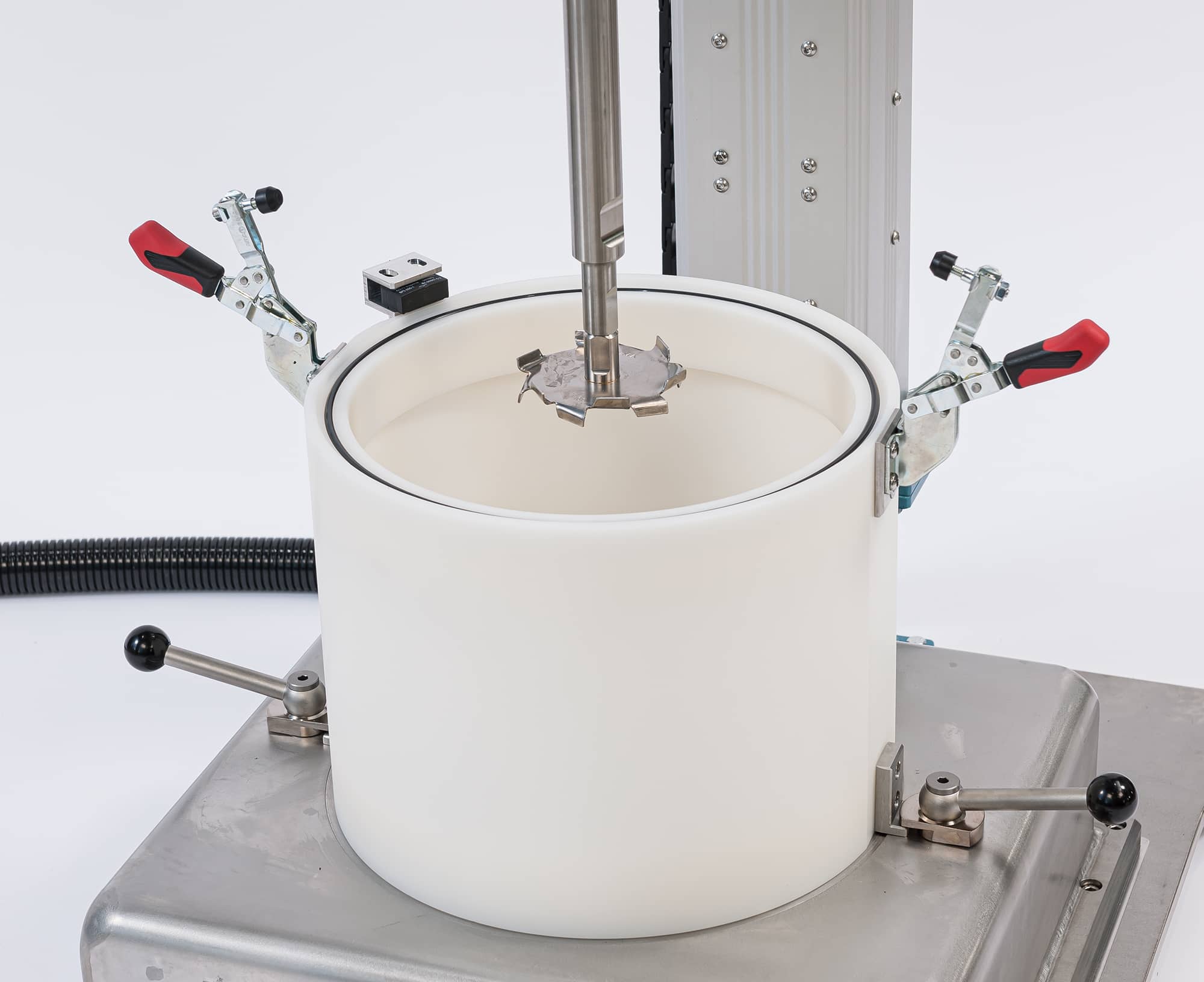

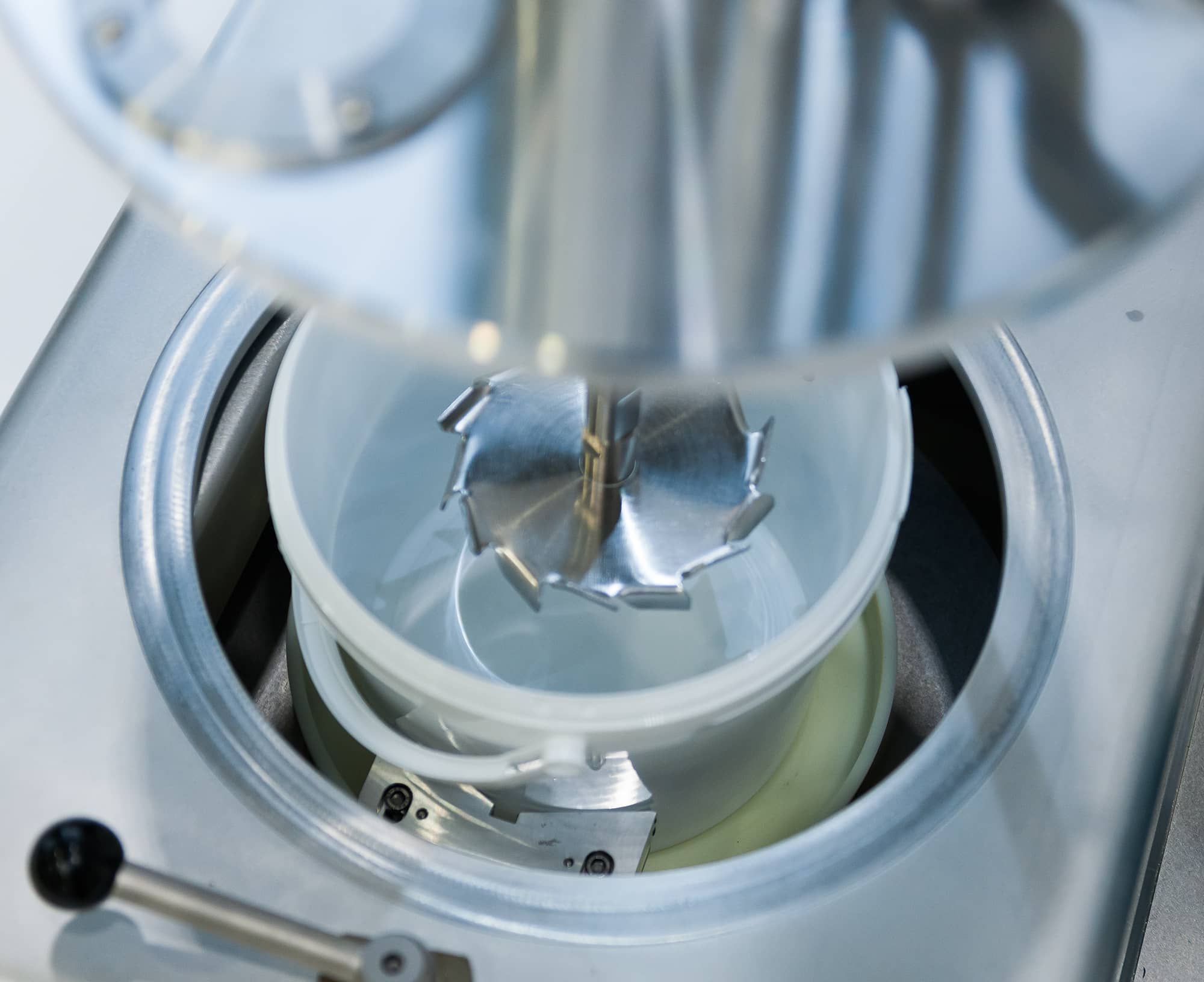

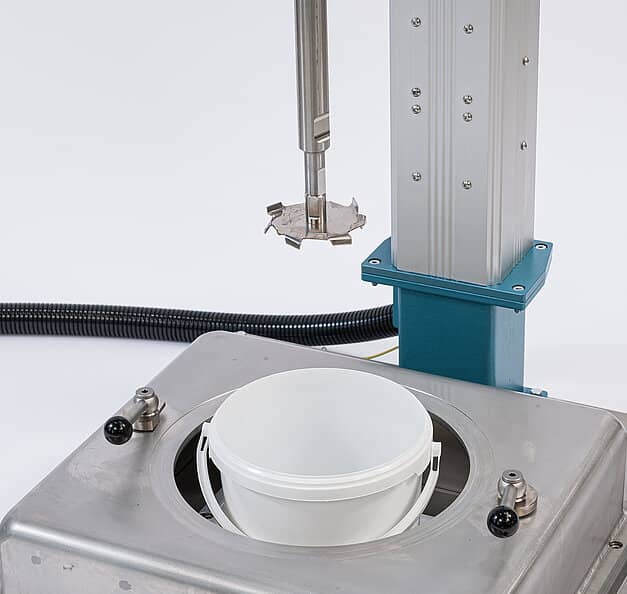

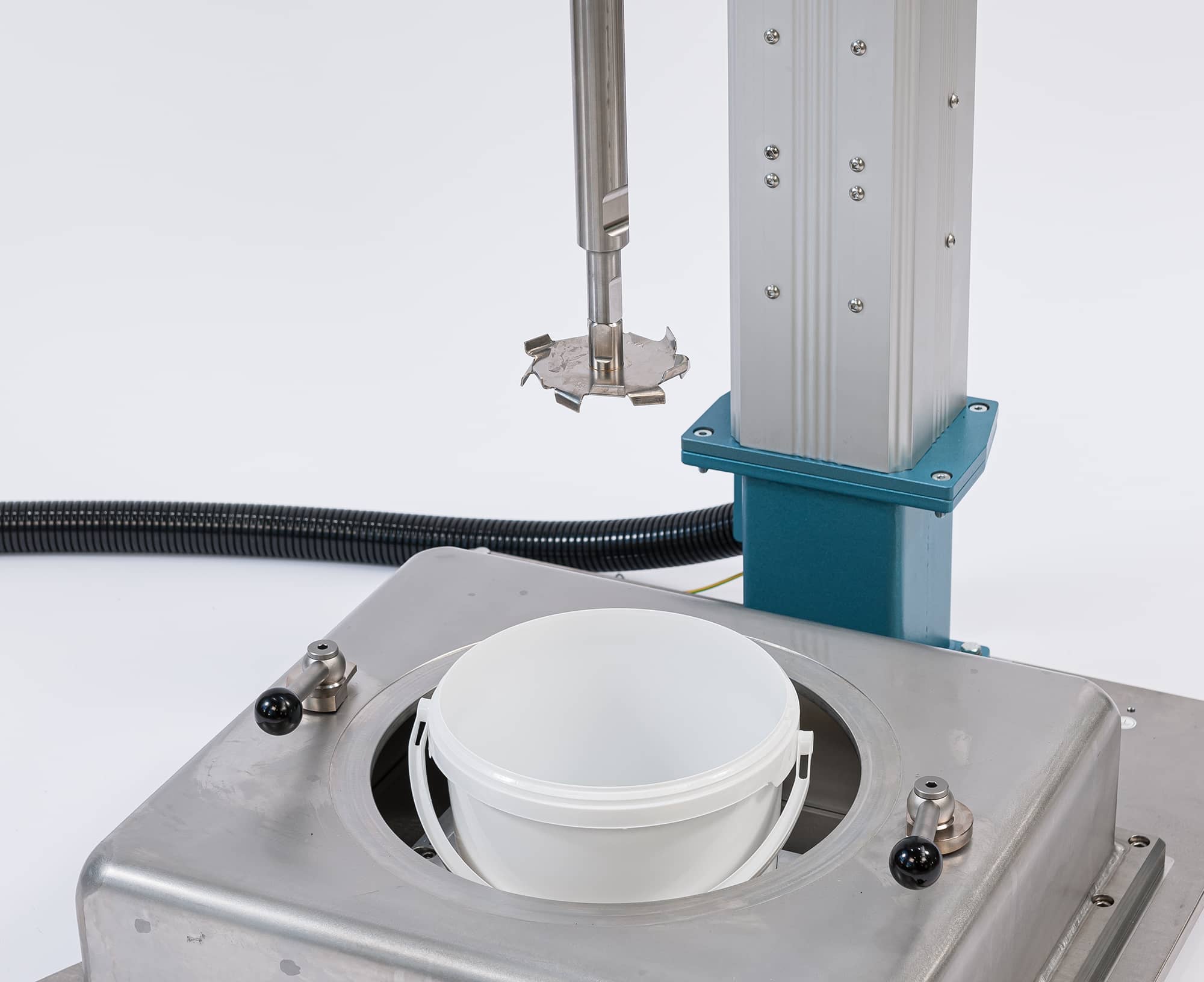

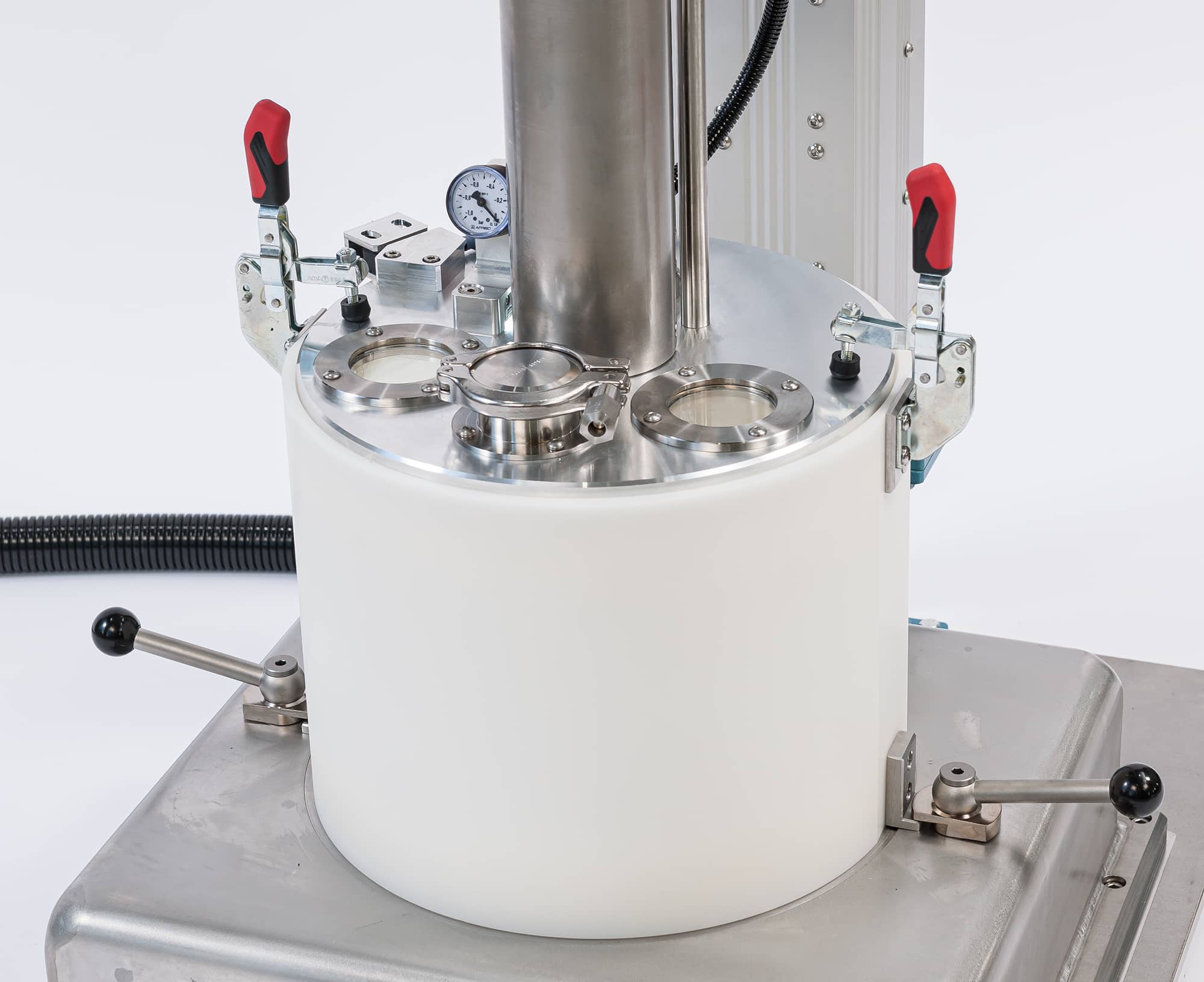

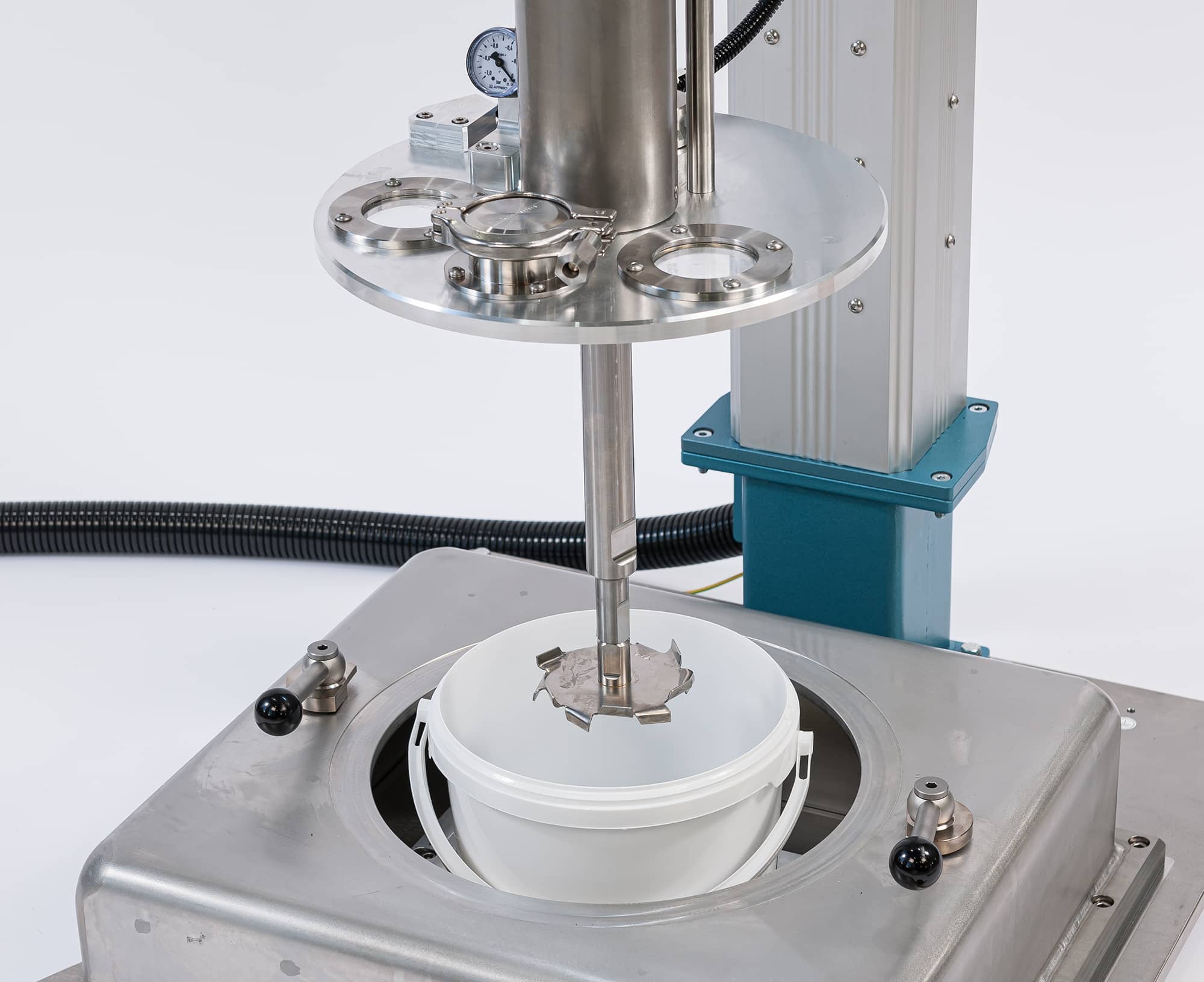

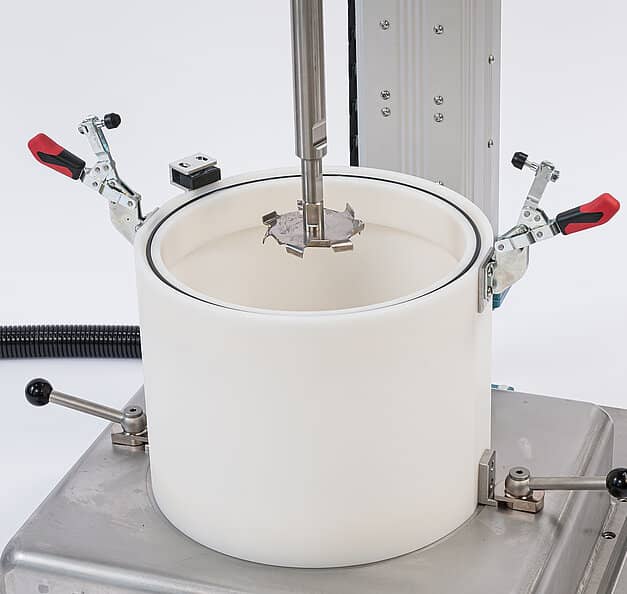

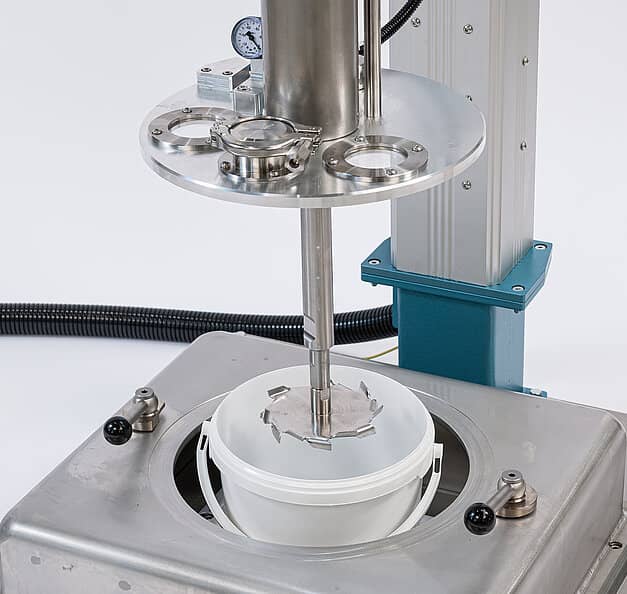

The DISPERMAT® VE is a vacuum dissolver which is suitable both for laboratory applications and for larger batches. The special feature of the DISPERMAT® VE is that it is not necessary to fill the product to be dispersed into a vacuum tight container. Instead, the dispersion process can be performed under vacuum in any containers. Containers may be single‒walled or double‒walled, and even the use of thin‒walled disposable containers is possible without any problems. The dispersing tool can be adjusted in height during operation.


Scraping system for dispersion of high‒viscosity products
The DISPERMAT® VE vacuum disperser can be equipped with a scraping system for high‒viscosity and non fluid substances. The scraping arm can be replaced very easily to suit different diameter containers.

Highlights DISPERMAT® VE vacuum dissolver

VACUUM DISPERSER
<p>DISPERMAT® TECHNOLOGY<br /> dispersing under vacuum</p>
DISPERWHEEL®
<p>SPEED ADJUSTMENT<br /> with rotary pulse encoder</p>
DISPERSAFE®
<p>TÜV CERTIFIED<br /> Safety module (EN ISO 13849-1)</p>
HEIGHT ADJUSTMENT
<p>ELECTRIC<br /> easy handling, functional design</p>
WORK SAFE
<p>DIRECTIVE 2006/42/EC<br /> integrated safety equipment</p>
C‒TECHNOLOGY
<p>PROCESS CONTROL<br /> repeatable dispersion results</p>
OPTION: SCRAPER
<p>SCRAPING SYSTEM<br /> for highly viscous products</p>
HIGH VISCOSE PRODUCTS
<p>DISPERMAT® TECHNOLOGY<br /> dispersing highly viscous substances</p>
OPTION: WINDISP© 7
<p>SOFTWARE<br /> documentation, research and QA</p>
MADE IN GERMANY
<p>SINCE 1972<br /> quality, precision &amp; durable technology</p>
DISPERMAT®
type
Power
kW
Speed
rpm
Product volume
litre
Vacuum dissolver DISPERMAT® VE10 2.2 0 – 6000 0.2 – 7
DISPERMAT® VE10
Stand H2BF
Dimensions W x H x D 81 x 190 x 80 cm
Height adjustment electric
Weight 200 - 250 kg

The DISPERMAT® VE vacuum dissolver is fitted with the C technology

C technology

DISPERWHEEL® speed adjustment
infinitely variable speed  adjustment with rotary pulse encoder

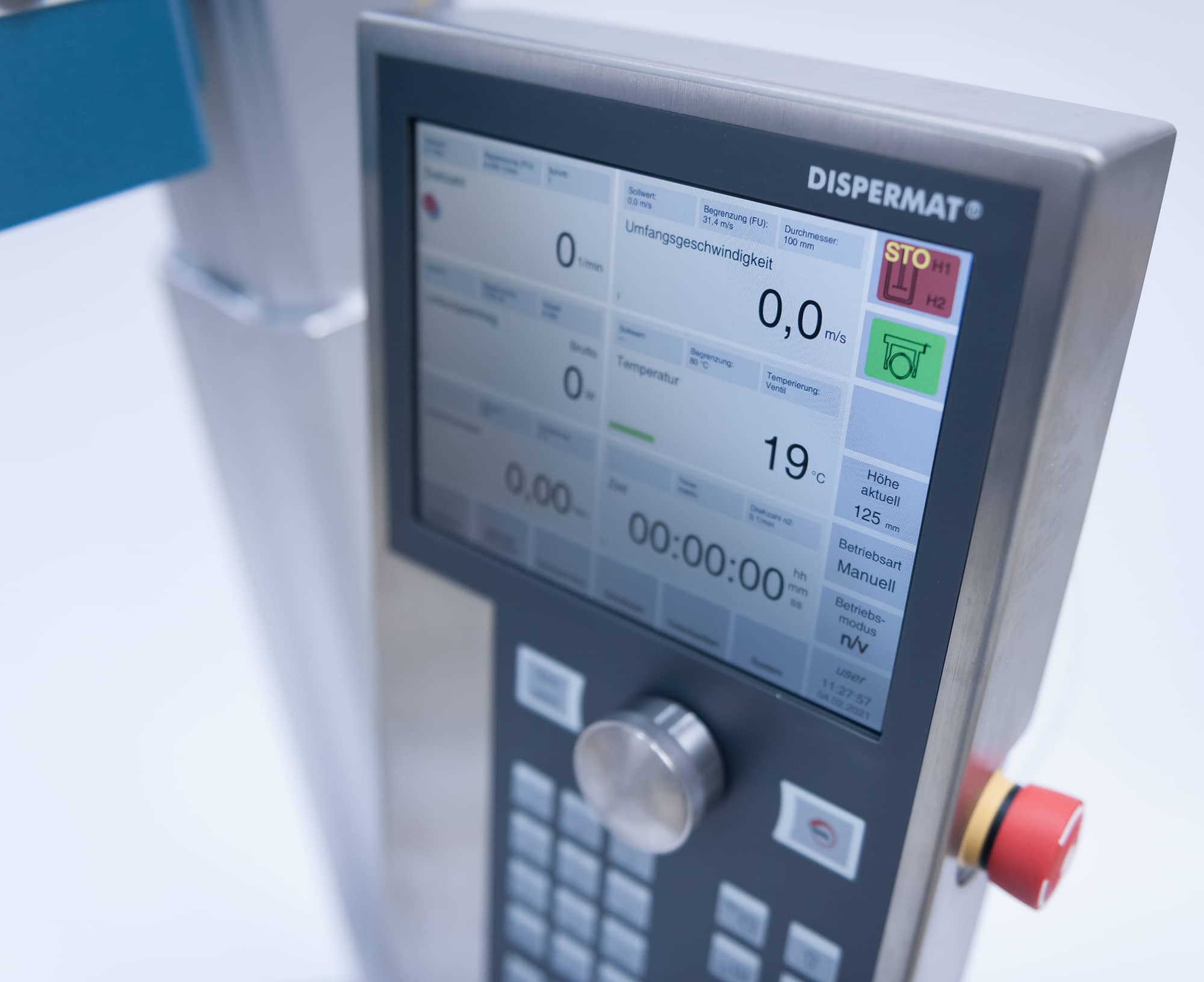

Large color display
indications of speed, torque, power, product temperature, timer, peripheral speed and height of the dispersing tool

Repeatability
dispersion method: constant speed or constant mechanical power input for optimum repeatability, temperature‒based dispersing

Data recording
ecording of the process parameters with graphical indication

Switch off parameters
switch off function for temperature, speed, torque and power

Database
100 individual PRESET configurations for H1, H2, speed, time, switch off parameters, ramp function, etc.

DISPERSAFE®
TÜV-certified safety module for convenient use of variable container sizes without limit switches or mechanical contraption. more …

Power compensation
net power calibration

Height measurement
adjustable working range for different container sizes

Connectivity
USB (Wi-Fi, LAN expected in 2022)

WINDISP 7©
data interface for WINDISP© 7 software for documentation, analysis, research, development and quality control

Dispersion containers and dissolver discs for the DISPERMAT® VE vacuum disperser

DISPERMAT® Dispersion containers Dissolver discs Ø
Vacuum dissolver DISPERMAT® VE10 0.5 ‒ 10 litres 50 ‒ 125 mm
