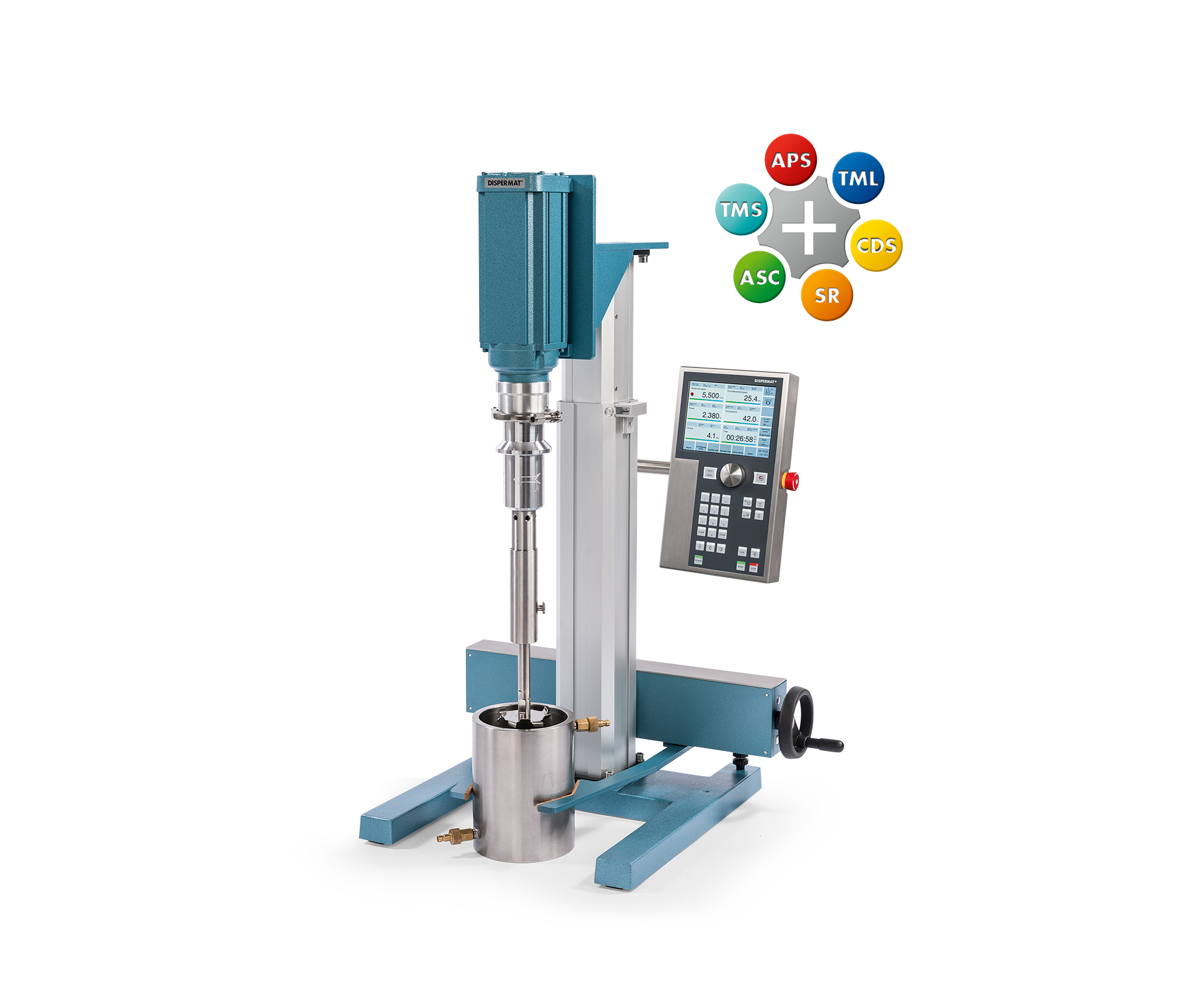

DISPERMAT® CA dissolver

Quiet high‒power disperser for repeatable dispersion results

Power
0.55 - 1.5 kW
Product
0.05 - 15 litres
Control
C [Comfort]

With the modular quick-change systems, the DISPERMAT® CA dissolver can also be used as: APS Bead Mill, TORUSMILL® TML Basket Mill, CDS Vacuum Dispersion System, SR Rotor-Stator Homogenizer, ASC Scraper System and TMS© Torque Meter .

Description

High‒speed dissolver with process control for product volumes from 0.05 to 15 litres

The DISPERMAT® CA is a high‒speed laboratory disperser with electric stand and C‒technology process control which makes it the perfect dissolver for research and development. The C‒technology generated details data and provides comprehensive information relating to the key dispersion parameters such as power, torque, tip speed, time or temperature.


Innovation made in Germany: The modular dispersion and fine grinding systems
The dissolver DISPERMAT® CA can also be used with the modular dispersion and fine grinding systems as a vacuum dissolver, bead mill, basket mill, homogenizer and dissolver for high viscous products.





Highlights DISPERMAT® CA dissolver

OPTION: ACCESSORY
<p>MODULAR SYSTEMS<br /> Flexible. Powerful. Innovative.</p>
DISPERWHEEL®
<p>SPEED ADJUSTMENT<br /> with rotary pulse encoder</p>
DISPERSAFE®
<p>TÜV CERTIFIED<br /> Safety module (EN ISO 13849-1)</p>
HEIGHT ADJUSTMENT
<p>ELECTRIC<br /> easy handling, functional design</p>
WORK SAFE
<p>DIRECTIVE 2006/42/EC<br /> integrated safety equipment</p>
C‒TECHNOLOGY
<p>PROCESS CONTROL<br /> repeatable dispersion results</p>
OPTION: WINDISP© 7
<p>SOFTWARE<br /> documentation, research and QA</p>
MADE IN GERMANY
<p>SINCE 1972<br /> quality, precision &amp; durable technology</p>
DISPERMAT®
type
Power
kW
Speed
rpm
Torque
Nm
Stand
type
Dissolver DISPERMAT® CA20 0.55 0 – 20000 0.5 H2L
Dissolver DISPERMAT® CA40 1.5 0 – 20000 1.5 H2L
DISPERMAT®
type
low‒viscosity
up to 500 mPs
medium‒viscosity
500 ‒ 5000 mPs
high‒viscosity
over 5000 mPs
Dissolver DISPERMAT® CA20
0.05 – 5 liters
1.7 oz – 1.3 gallons
0.05 – 3 liters
1.7 oz – 3.2 qt
0.05 – 1,5 liters
1.7 oz – 1.6 qt
Dissolver DISPERMAT® CA40
0.05 – 15 liters
1.7 oz – 4 gallons
0.05 – 8 liters
1.7 oz – 2.1 gallons
0.05 – 4 liters
1.7 oz – 1.1 gallons
DISPERMAT® CA
Stand H2L
Dimensions W x H x D
74 x 149 x 55 cm
29 x 59 x 22 inch
Height adjustment electric
Container capacity
0.125 ‒ 25 litres
4.2 oz – 6.6 gallons
Container clamping
range Ø
5 ‒ 35 cm
2 ‒ 13.8 inch
Container height
47 cm
18.5 inch
Weight
170 kg
375 lbs

The DISPERMAT® CA dissolver is fitted with the C technology

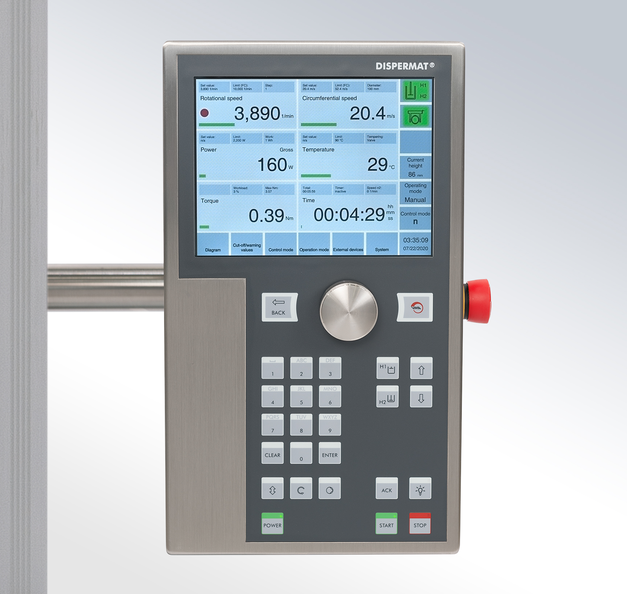

C technology

Glass panel
High-quality glass front with a large colour display and an integrated, solvent-resistant, backlit membrane keypad.

Colour display
Extra-large colour display with indication of speed, torque, power input, product temperature, timer, peripheral speed, height of dispersing tool, status bar with safety indicators, working heights, operating modes, etc.

Timer
Timer function with display of the pre‒selected time as well as the elapsed time. Timer‒controlled switch over to second speed.

DISPERSAFE®
TÜV-certified safety module enbles the use of different container sizes without additional limit switches or mechanical devices.

DISPERWHEEL®
Speed adjustment infinitely variable speed adjustment with rotary pulse encoder.

Height measurement
Adjustable working range for different container sizes. (HA, H1, H2)

LED lamp
Switching of a high performance LED lamp to fully illuminate the dispersion process inside the container.

Special features
Additional function keys that can be assigned for the connection of external components

Repeatability
Dispersion method: constant speed or constant mechanical power input for optimum repeatability, temperature‒based dispersing.

Data recording
Recording of the process parameters with graphical indication.

Switch off parameters
Switch off function for temperature, speed, torque and power.

Database
100 individual PRESET configurations for H1, H2, speed, time, switch off parameters, ramp function, etc.

Power compensation
Net power calibration.

User administration
Create and manage different users.

Scale
Option to connect an external precision scale.

WINDISP©
USB data interface for WINDISP© software for documentation, analysis, research, development and quality control.

Flexible. Powerful. Innovative.

Innovation made in Germany: With the modular quick-change systems, the DISPERMAT® CA dissolver can also be used as: APS Bead Mill, TORUSMILL® TML Basket Mill, CDS Vacuum Dispersion System, SR Rotor-Stator Homogenizer, ASC Scraper System and TMS© Torque Meter .

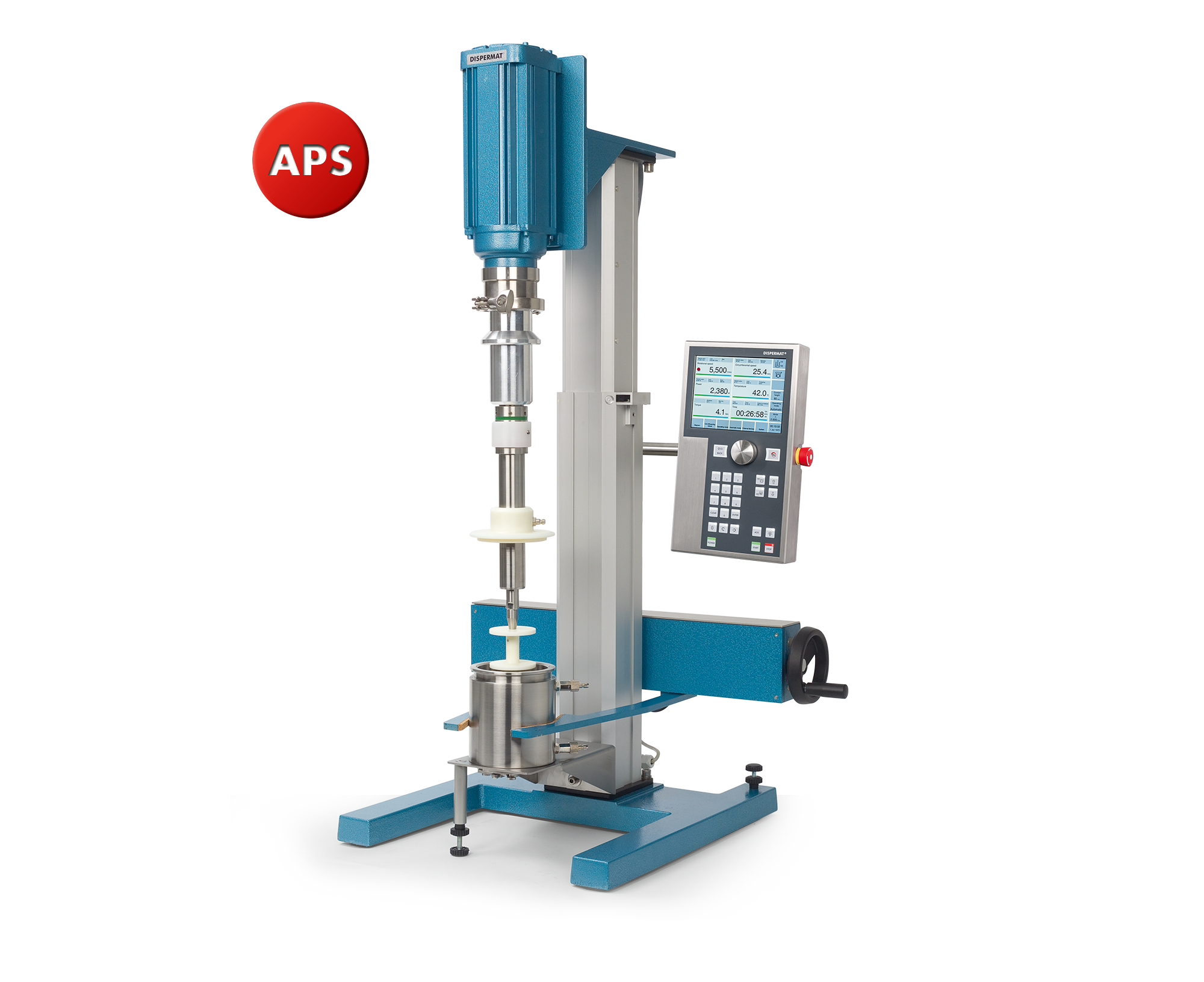

APS Bead Mill

Modular bead mill for DISPERMAT® dissolvers.

The addition of the modular APS bead mill converts the DISPERMAT® dissolver into a closed batch bead milling system.

APS Bead Mill

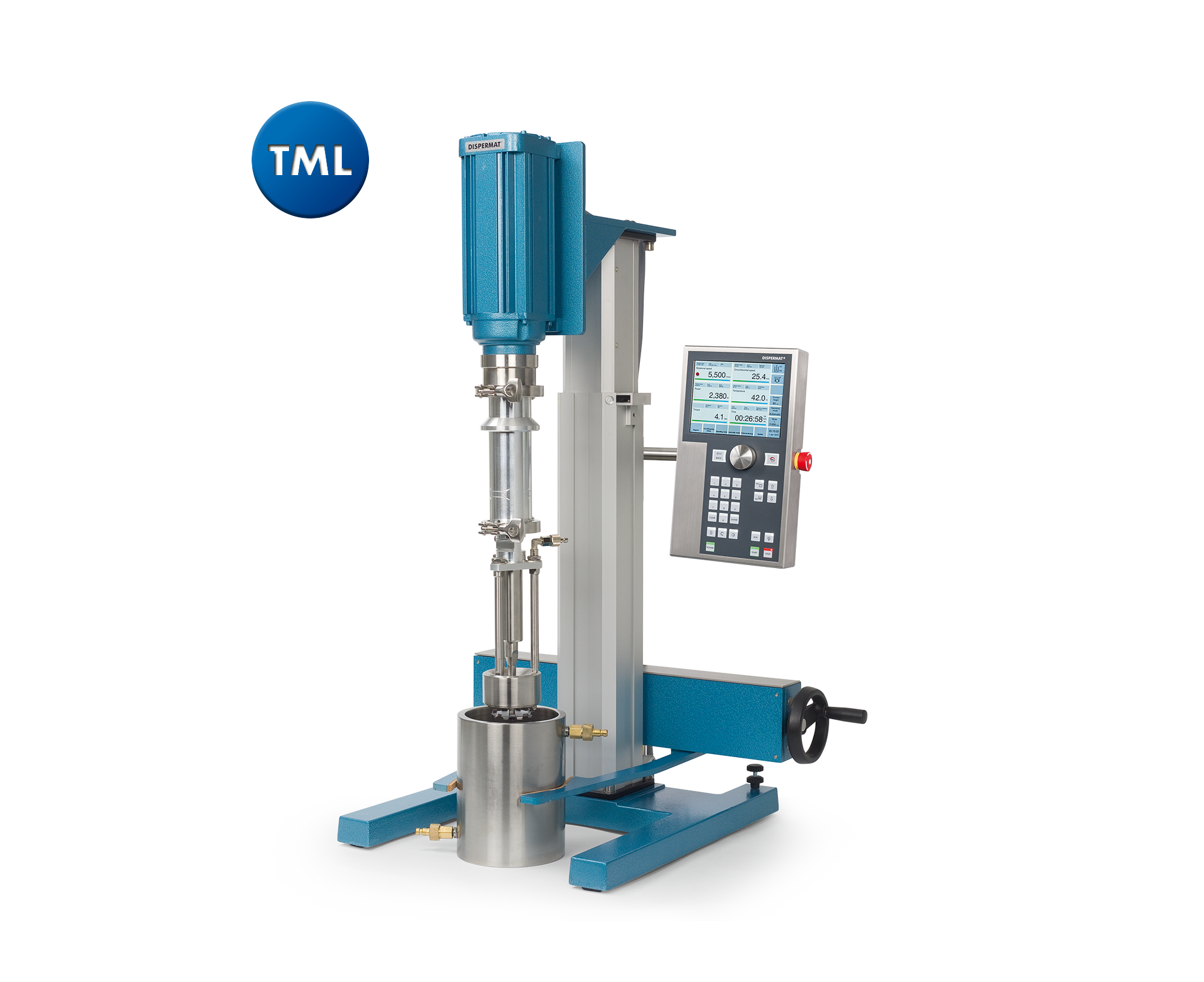

TORUSMILL® TML Basket Mill

Modular basket mill for DISPERMAT® dissolvers

The addition of the modular TML basket mill converts the DISPERMAT® dissolver into an extremely efficient fine grinding system.

TORUSMILL® TML Basket Mill

CDS Vacuum Dispersion System

Modular vacuum system for DISPERMAT® dissolvers

The CDS vacuum dispersion system enables the dispersion process in a completely closed system under vacuum.

CDS Vacuum Dispersion System

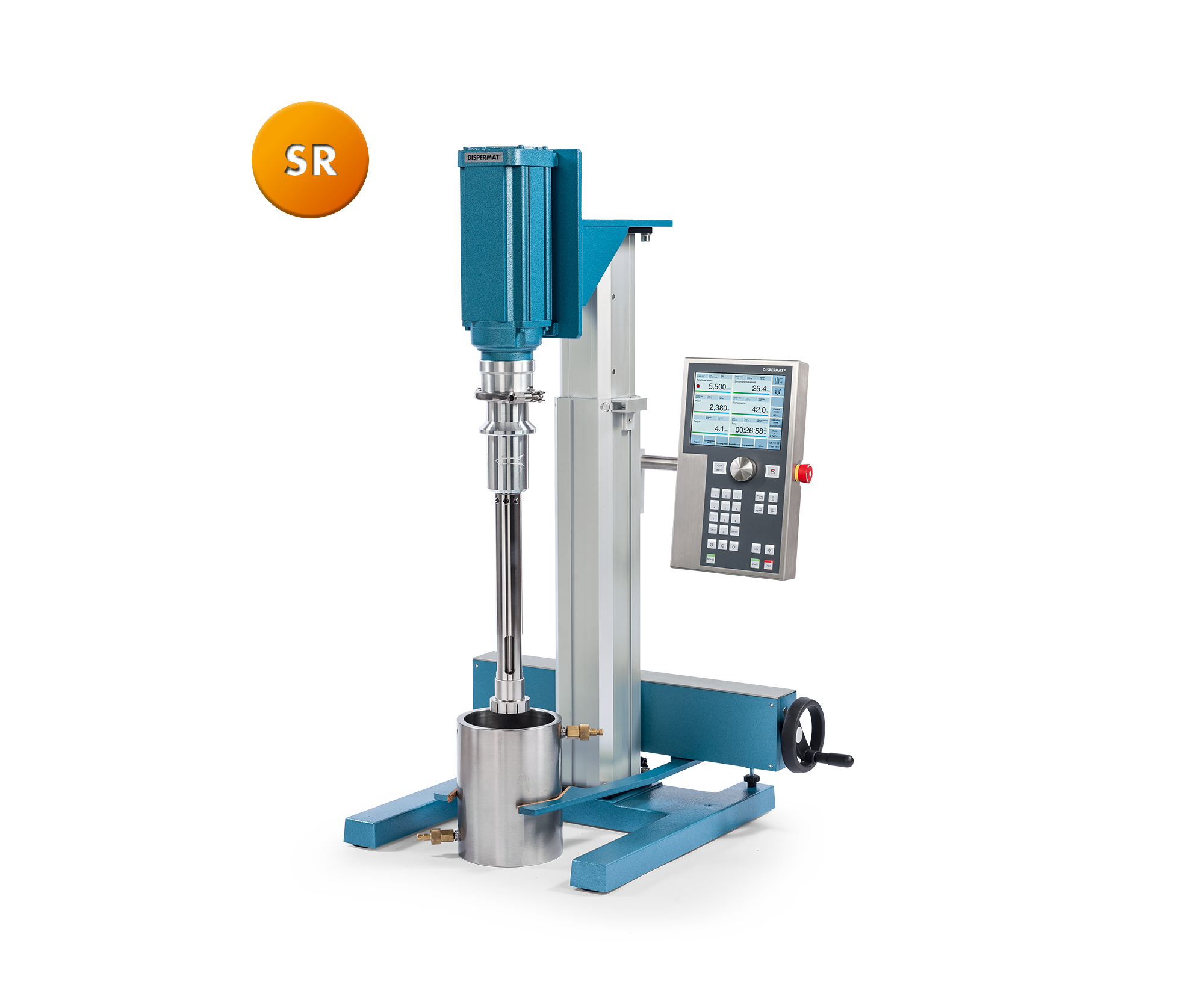

SR Rotor-Stator Homogenizer

Modular rotor-stator dispersion system

Vertical high-performance rotor-stator systems for homogenizing, emulsifying, dispersing, mixing and dissolving.

SR Rotor-Stator Homogenizer

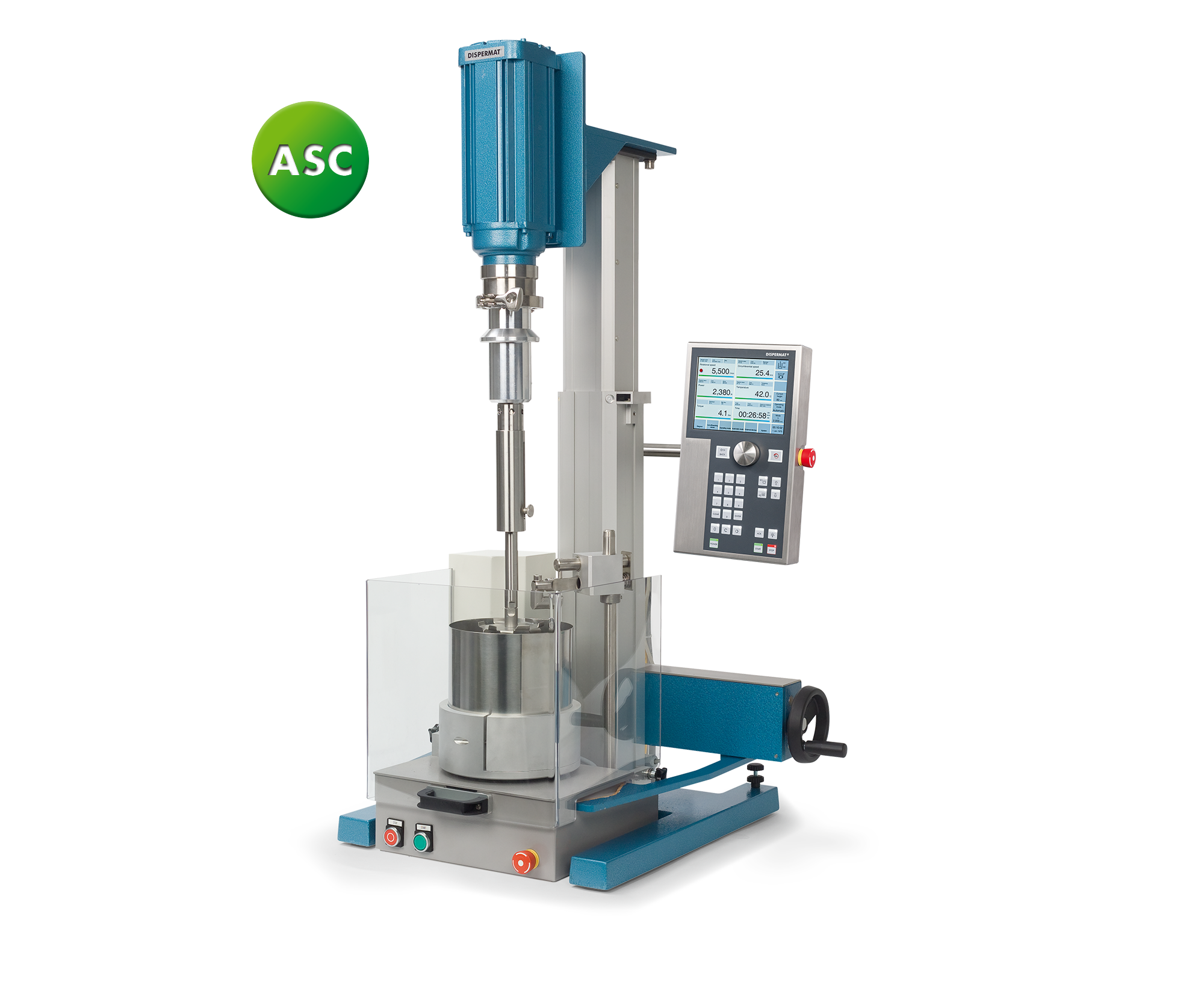

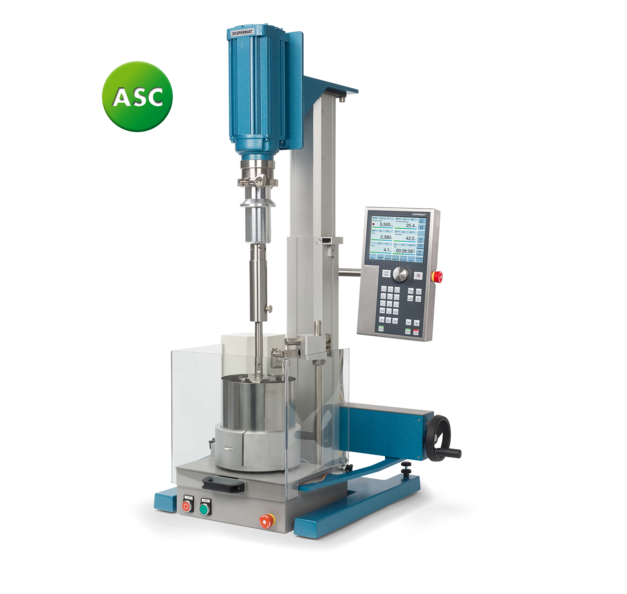

ASC Scraper System

Modular scraper system for DISPERMAT® dissolvers

ASC scraper system for dispersing, stirring and mixing of high-viscosity and non-flowing substances.

ASC Scraper System

TMS© Torque Meter

Modular torque meter for DISPERMAT® laboratory dissolvers

TMS© is an optional torque meter for dispersing machines of DISPERMAT® CA and AE series.

TMS© Torque Meter
