DISPERMAT® SL-NANO bead mill

Nano bead mill for 0.1mm milling beads. Optional: explosion‒proof according to ATEX.

Power
1.1 – 3 kW
Product
0.05 – 10 litres
Control
C [Comfort]

The DISPERMAT® SL-NANO bead mill is a closed nano bead mill with a high power input and extremely low clearance volume for circulation and single pass milling. The nano bead mill can be used for wet grinding more

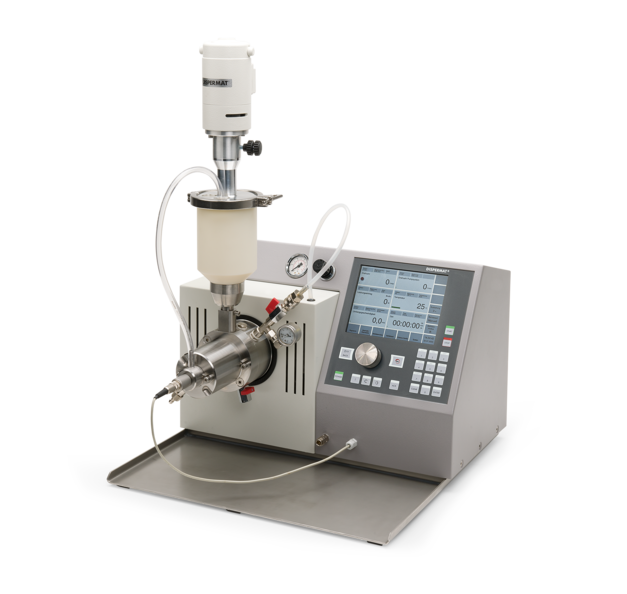

DISPERMAT® SL-NANO bead mill

The DISPERMAT® SL-NANO bead mill is a closed nano bead mill with a high power input and extremely low clearance volume for circulation and single pass milling. The nano bead mill can be used for wet grinding in laboratory and production. The milling system is made of high alloy steel. As an option it is available in:

  • Ceramic or hard metal is also available for pharmaceutical and electronic applications where metallic abrasion in the millbase has to be avoided.
  • ZrO2 zirconium oxide: a hardwearing white ceramic for minimal wear or colour contamination.
  • SiSiC silicon carbide: a hard black ceramic for minimal wear and with excellent heat transfer properties



Features of the nano bead mill:

  • High millbase yield due to pneumatic press out system
  • Extremely small milling beads from 0.1 ‒ 0.3 mm
  • C‒control with extensive process control
  • Data interface for documentation and analysis
  • Ideally suited to research, development and quality assurance
  • Compact design and very easy‒to‒clean
  • High repeatability of the dispersions
  • Scale‒up: easy transfer of laboratory results to production scale
  • Modular design: a modification to use larger beads is possible at any time



Examples of research and application fields in nano technology:

  • Scratch‒resistant and wear‒resistant coatings
  • Coatings with a self cleaning lotus effect
  • Tribological coatings for reducing abrasion
  • Electrically conductive varnishes e.g. for heating car windscreens
  • Varnishes for electrical insulation
  • Varnishes with high UV absorption
  • Printable electronics
  • Formable coatings
  • Hygienic textiles
  • Medical markers
  • Cosmetics industry



Highlights DISPERMAT® SL-NANO bead mill

NANO TECHNOLOGY
<p>FINE GRINDING<br /> down to the nano scale</p>
DISPERWHEEL®
<p>SPEED ADJUSTMENT<br /> with rotary pulse encoder</p>
C‒TECHNOLOGY
<p>PROCESS CONTROL<br /> repeatable dispersion results</p>
OPTION: CERAMIC DESIGN
<p>MILLING SYSTEM<br /> made of ZrO2 or SiSiC</p>
OPTION: ATEX
<p>ZONE 0/1/2<br /> explosion protection</p>
OPTION: WINDISP© 7
<p>SOFTWARE<br /> documentation, research and QA</p>
MADE IN GERMANY
<p>SINCE 1972<br /> quality, precision &amp; durable technology</p>
DISPERMAT®
type
Power
kW
Speed
rpm
Milling chamber volume
litre
Product volume
litre
DISPERMAT® SL5-NANO bead mill 1.1 0 – 6000 0.05 0.05 – 0.75
DISPERMAT® SL12-NANO bead mill 1.1 0 – 6000 0.125 0.15 – 0.75
DISPERMAT® SL25-NANO bead mill 2.2 0 – 6000 0.25 0.3 – 2.5
DISPERMAT® SL50-NANO bead mill 3 0 – 6000 0.5 0.5 – 10

The DISPERMAT® SL-NANO bead mill is fitted with the C technology

C technology

DISPERWHEEL® speed adjustment
infinitely variable speed  adjustment with rotary pulse encoder

Large color display
indications of speed, torque, power, product temperature, timer and peripheral speed

Repeatability
dispersion method: constant speed or constant mechanical power input for optimum repeatability, temperature‒based dispersing

Data recording
recording of the process parameters with graphical indication

Switch off parameters
switch off function for temperature, speed, torque and power

Database 100 individual PRESET configurations for speed, time, switch off parameters, ramp function, etc.

Power compensation
net power calibration

Connectivity
USB (Wi-Fi, LAN expected in 2022)

WINDISP 7©
data interface for WINDISP© 7 software for documentation, analysis, research, development and quality control
