DISPERMAT® AE-EX dissolver
Powerful dispersers for hazardous areas according to zone 1/0 2014/34 EU product directive
- Power
- 1.1 - 9.2 kW
- Product
- 0.25 - 200 litres
- Control
- C / M-EX [Comfort / Basic]
Description

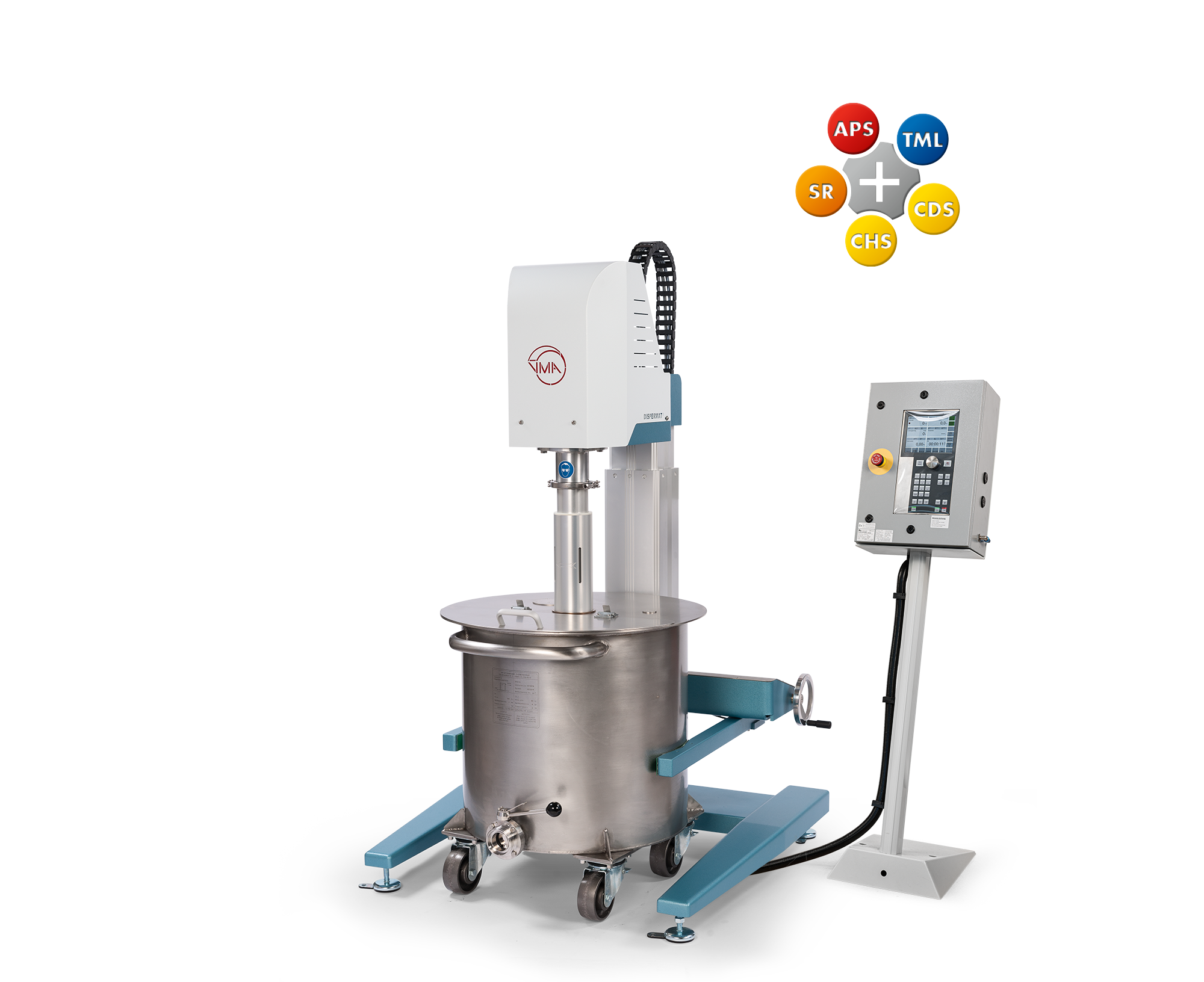

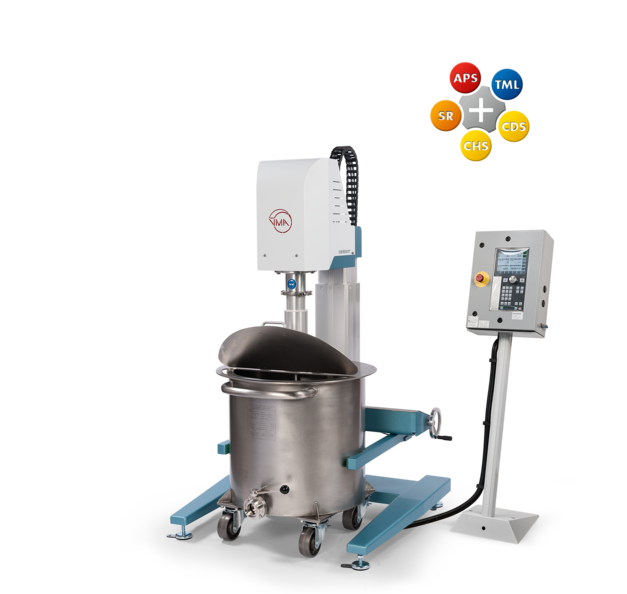

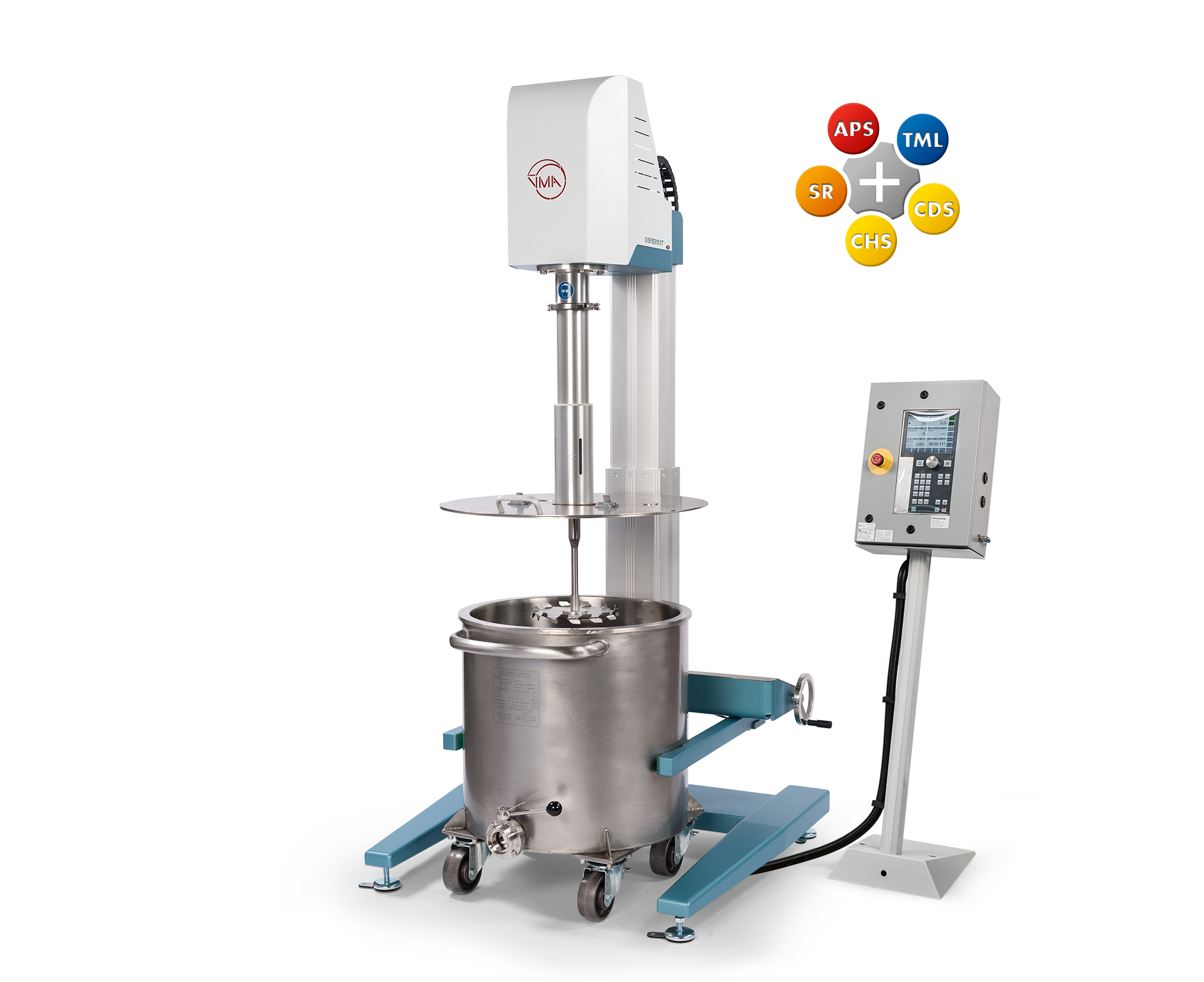

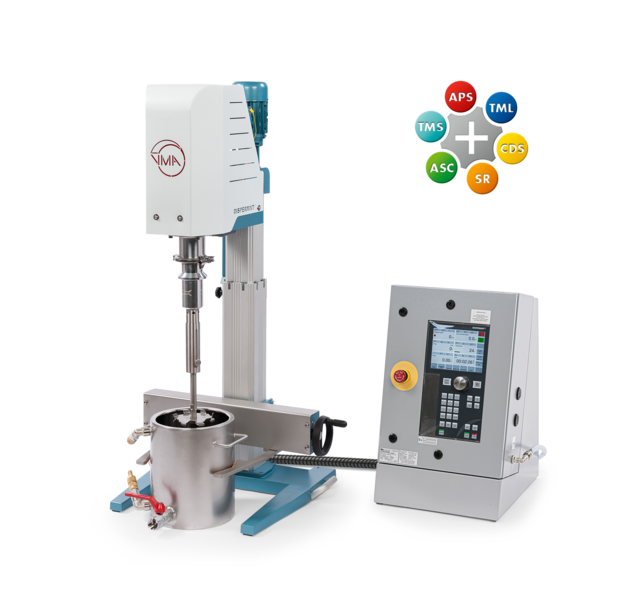

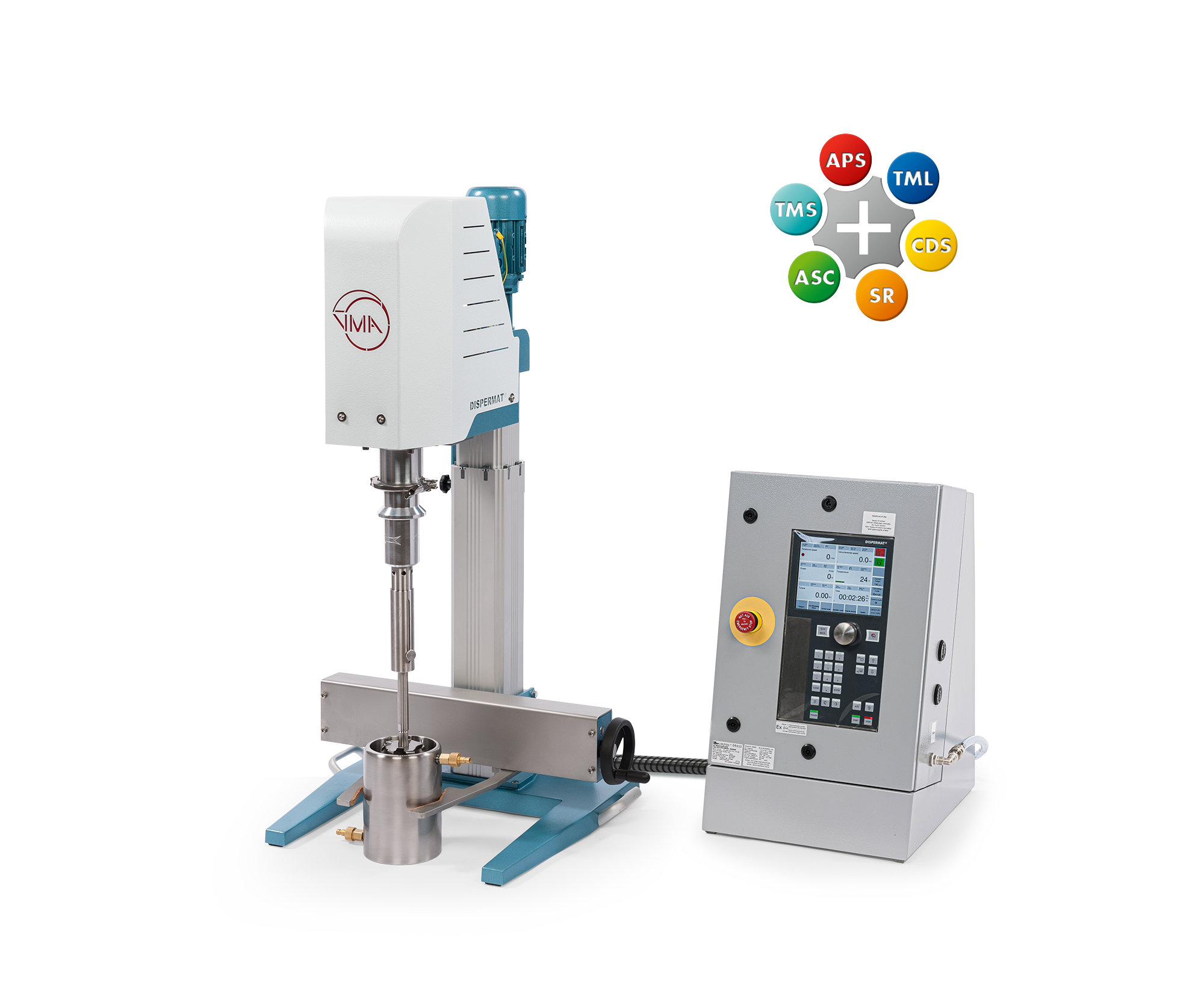

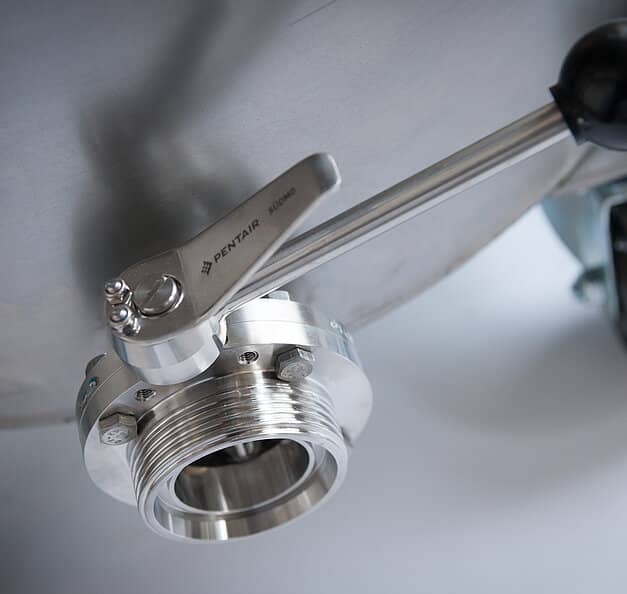

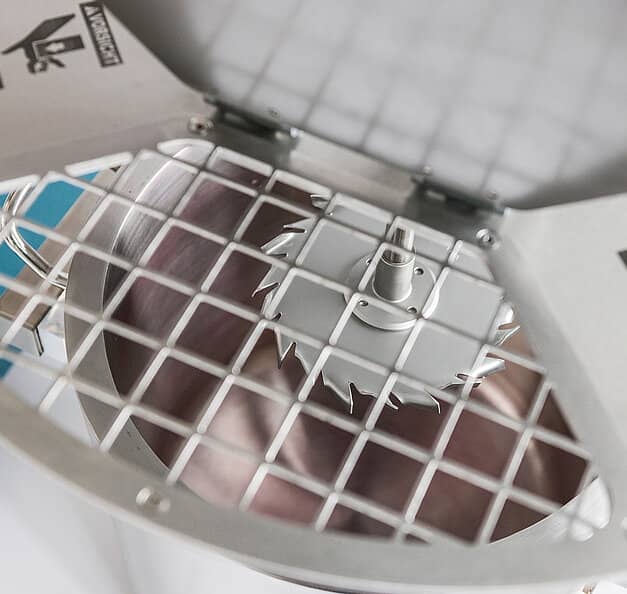

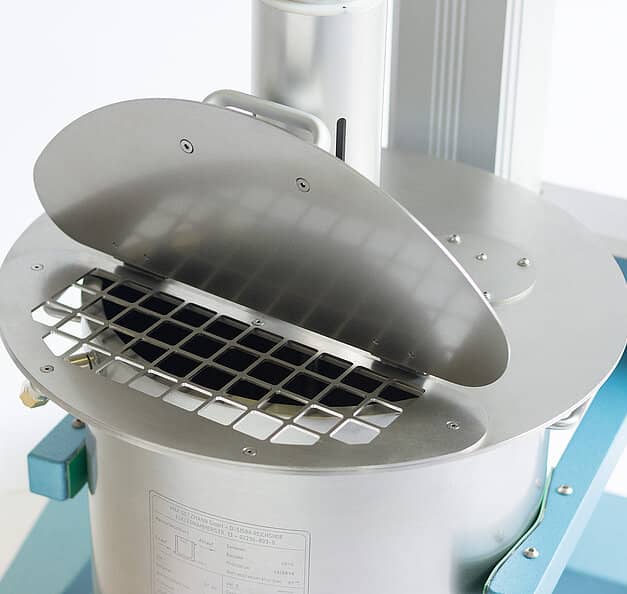

Explosion-proof dissolver for reproducible dispersions in the laboratory, pilot plant and production
The DISPERMAT® AE-M-EX and AE-C-EX are explosion‒proof laboratory and pilot plant dispersers for use in hazardous areas applications. In these dissolvers the motor, the control system, the electric height adjustment and the complete safety device are all explosion‒proof. The enclosure with built‒in electronics is not explosion‒proof and must be installed in a suitable safe area. The motors are three‒phase (EEx d II B T3 ignition protection) which allow a smooth start from zero; the speed is infinitely variable due to the use of advanced frequency converters. During the motor operation the generated heat is dissipated either through the surface of the motor or via an external fan; this will ensure a low‒noise operation.
WINDISP© 7 software
The optional WINDISP© 7 PC‒software can be used to record and log the experimental dispersion data. A bidirectional interface allows WINDISP© 7 to control certain functions of the dissolver, for example dispersing at a specific temperature by regulating the dissolver speed. Additional functions include curve overlay for data comparison, event marker, a data base and data export to EXCEL.
Highlights DISPERMAT® AE-EX dissolver
<p>MODULAR SYSTEMS<br /> Flexible. Powerful. Innovative.</p>
<p>ZONE 0/1/2<br /> explosion protection</p>
<p>ELECTRIC<br /> easy handling, functional design</p>
<p>DIRECTIVE 2006/42/EC<br /> integrated safety equipment</p>
<p>PROCESS CONTROL<br /> repeatable dispersion results</p>
<p>SPEED ADJUSTMENT<br /> with rotary pulse encoder</p>
<p>TÜV CERTIFIED<br /> Safety module (EN ISO 13849-1)</p>
<p>SOFTWARE<br /> documentation, research and QA</p>
<p>SINCE 1972<br /> quality, precision & durable technology</p>
Features
| DISPERMAT® type | Power kW | Speed rpm | Torque Nm | Stand type |
|---|---|---|---|---|
| Dissolver DISPERMAT® AE03-EX | 1.1 | 0 – 10000 | 2 | H2L |
| Dissolver DISPERMAT® AE04-EX | 2.2 | 0 – 10000 | 4 | H2L |
| Dissolver DISPERMAT® AE05-EX | 1.1 | 0 – 6000 | 3.7 | H2L |
| Dissolver DISPERMAT® AE06-EX | 2.2 | 0 – 6000 | 7.4 | H2L |
| Dissolver DISPERMAT® AE08-EX | 4 | 0 – 6000 | 13.7 | H2SF |
| Dissolver DISPERMAT® AE10-EX | 4 | 0 – 3000 | 26.5 | H2SF |
| Dissolver DISPERMAT® AE13-EX | 9.2 | 0 – 3000 | 62 | H3S |
| DISPERMAT® type | low‒viscosity up to 500 mPs | medium‒viscosity 500 ‒ 5000 mPs | high‒viscosity over 5000 mPs |
|---|---|---|---|
| Dissolver DISPERMAT® AE03-EX | 0.25 – 20 liters 8.5 oz – 5.3 gallons | 0.25 – 10 liters 8.5 oz – 2.6 gallons | 0.25 – 5 liters 8.5 oz – 1.3 gallons |
| Dissolver DISPERMAT® AE04-EX | 0.25 – 20 liters 8.5 oz – 5.3 gallons | 0.25 – 15 liters 8.5 oz – 4 gallons | 0.25 – 7.5 liters 8.5 oz – 2 gallons |
| Dissolver DISPERMAT® AE05-EX | 0.5 – 20 liters 16.9 oz – 5.3 gallons | 0.5 – 15 liters 16.9 oz – 4 gallons | 0.5 – 7.5 liters 16.9 oz – 2 gallons |
| Dissolver DISPERMAT® AE06-EX | 0.5 – 20 liters 16.9 oz – 5.3 gallons | 0.5 – 20 liters 16.9 oz – 5.3 gallons | 0.5 – 10 liters 16.9 oz – 2.6 gallons |
| Dissolver DISPERMAT® AE08-EX | 4 – 60 liters 1.1 – 16 gallons | 4 – 40 liters 1.1 – 10.6 gallons | 4 – 20 liters 1.1 – 5.3 gallons |
| Dissolver DISPERMAT® AE10-EX | 4 – 70 liters 1.1 – 18 gallons | 4 – 70 liters 1.1 – 18 gallons | 4 – 35 liters 1.1 – 9.2 gallons |
| Dissolver DISPERMAT® AE13-EX | 10 – 200 liters 2.6 – 53 gallons | 10 – 175 liters 2.6 – 46 gallons | 10 – 100 liters 2.6 – 26 gallons |
 |  |  | |
| DISPERMAT® AE03-EX - AE06-EX, Stand H2ST-Ex | DISPERMAT® AE08-EX - AE10-EX, Stand H2SF-Ex | DISPERMAT® AE13-EX, Stand H3S-Ex | |
|---|---|---|---|
| Dimensions W x H x D | 85 x 162 x 60 cm 33 x 64 x 24 inch | 90 x 230 x 70 cm 35 x 91 x 28 inch | 120 x 237 x 105 cm 47 x 93 x 41 inch |
| Height adjustment | electric | electric | electric |
| Container capacity | 0.125 - 25 litres 4.2 oz – 6.6 gallons | 15 - 100 litres 4 – 26 gallons | 25 - 250 litres 6.6 – 66 gallons |
| Container clamping range Ø | 5 ‒ 40 cm 2 ‒ 15.7 inch | 25 ‒ 61 cm 9.8 ‒ 24 inch | 30 ‒ 75 cm 11.8 ‒ 29.5 inch |
| Container height | 6 ‒ 50 cm 2.4 ‒ 19.7 inch | 25 ‒ 74 cm 9.8 ‒ 29.1 inch | 39 ‒ 90 cm 15.4 ‒ 35.4 inch |
| Weight | 170 kg 375 lbs | 250 kg 551 lbs | 400 kg 882 lbs |
| Category 1 | Category 2 | Category 3 | |
|---|---|---|---|
| Hazard | permanent, frequent or over an extended time | occasionally | rarely and for a short time |
| Requirement | very high safety | high safety | normal safety |
| Zone / Substance group | Zone 0 / Gas Zone 20 / Dust | Zone 1 / Gas Zone 21 / Dust | Zone 2 / Gas Zone 22 / Dust |
Temperature classes and explosion groups
Refer to temperature classes and explosion groups for an assignment of gases and vapours.
| Explosion group | T1 >450°C | T2 300 ‒ 450°C | T3 200 ‒ 300°C | T4 135 ‒ 200°C | T5 100 ‒ 135°C | T6 85 ‒ 100°C |
|---|---|---|---|---|---|---|
| IIA | acetone ethane ammonium benzol acetic acid carbon oxide methane methanol methyl chloride naphthalene phenol propane toluene | i-amyl acetate n-butane n-butyl alcohol cyclohexanol 1,2 -dichloroethane acetic anhydride | benzines diesel kerosene fuel oils n-hexane | acetaldehyde | ||
| IIB | city gas | ethylene | hydrogen sulphide | ethyl ether | ||
| IIC | hydrogen | acetylene | carbon disulphide |
Process control
The dissolver DISPERMAT® AE-EX is available with C or M-EX control
C technology
Glass panel
High-quality glass front with a large colour display and an integrated, solvent-resistant, backlit membrane keypad.
Colour display
Extra-large colour display with indication of speed, torque, power input, product temperature, timer, peripheral speed, height of dispersing tool, status bar with safety indicators, working heights, operating modes, etc.
Timer
Timer function with display of the pre‒selected time as well as the elapsed time. Timer‒controlled switch over to second speed.
DISPERSAFE®
TÜV-certified safety module enbles the use of different container sizes without additional limit switches or mechanical devices.
DISPERWHEEL®
Speed adjustment infinitely variable speed adjustment with rotary pulse encoder.
Height measurement
Adjustable working range for different container sizes. (HA, H1, H2)
LED lamp
Switching of a high performance LED lamp to fully illuminate the dispersion process inside the container.
Special features
Additional function keys that can be assigned for the connection of external components
Repeatability
Dispersion method: constant speed or constant mechanical power input for optimum repeatability, temperature‒based dispersing.
Data recording
Recording of the process parameters with graphical indication.
Switch off parameters
Switch off function for temperature, speed, torque and power.
Database
100 individual PRESET configurations for H1, H2, speed, time, switch off parameters, ramp function, etc.
Power compensation
Net power calibration.
User administration
Create and manage different users.
Scale
Option to connect an external precision scale.
WINDISP©
USB data interface for WINDISP© software for documentation, analysis, research, development and quality control.
M-EX technology
Digital display
digital display of the speed
Speed adjustment
infinitely variable speed adjustment
Electric height adjustment
control of the convenient electrical height adjustment of the drive motor
On/Off switch
Emergency off switch

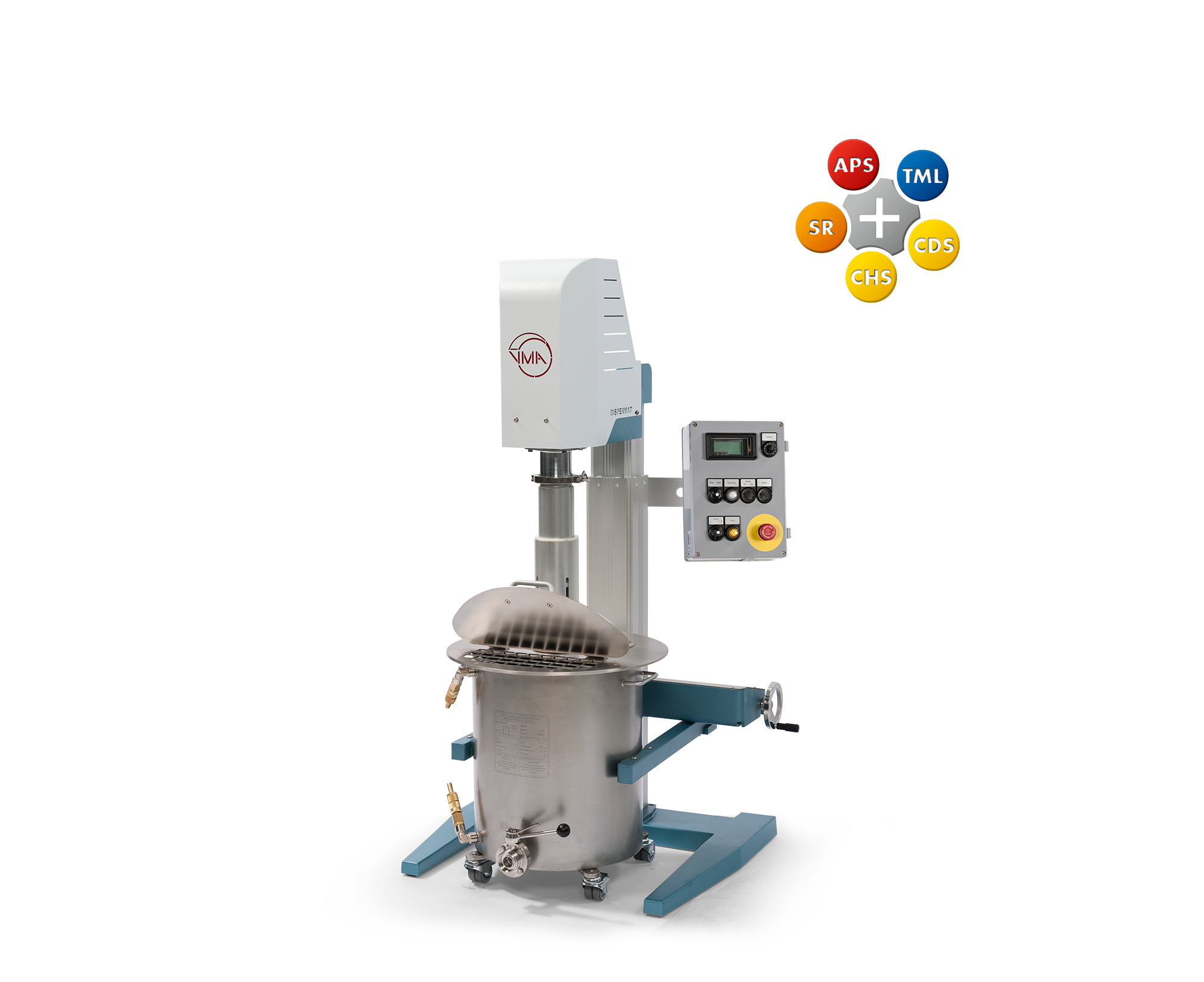

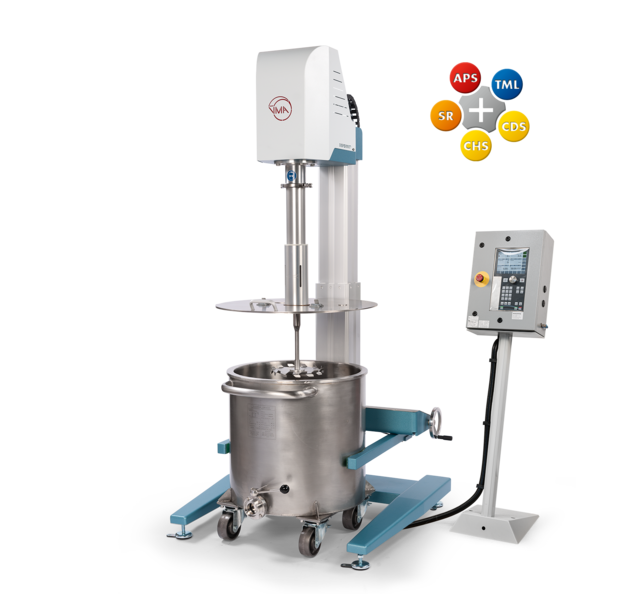

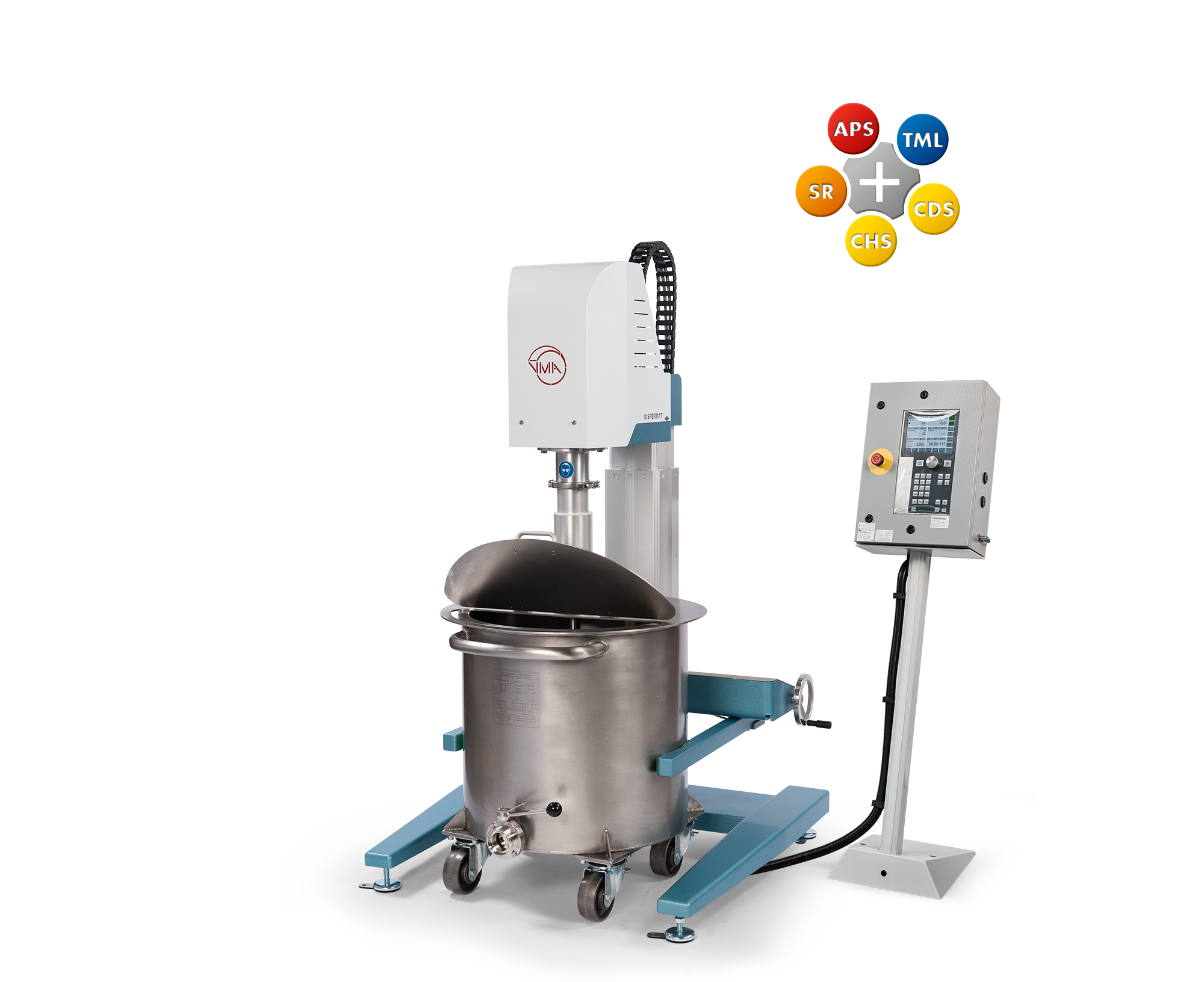

Adaptable systems
Flexible. Powerful. Innovative.

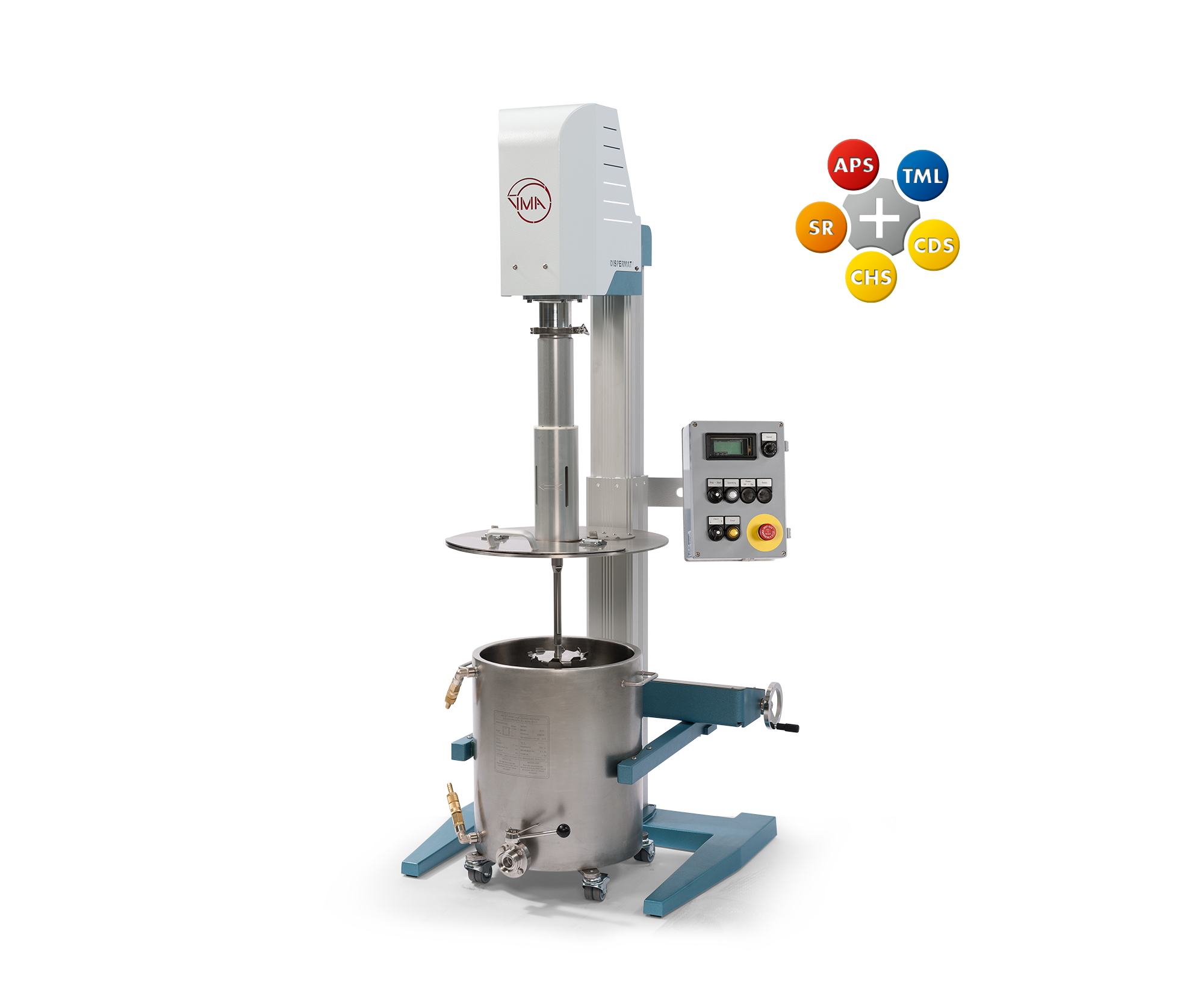

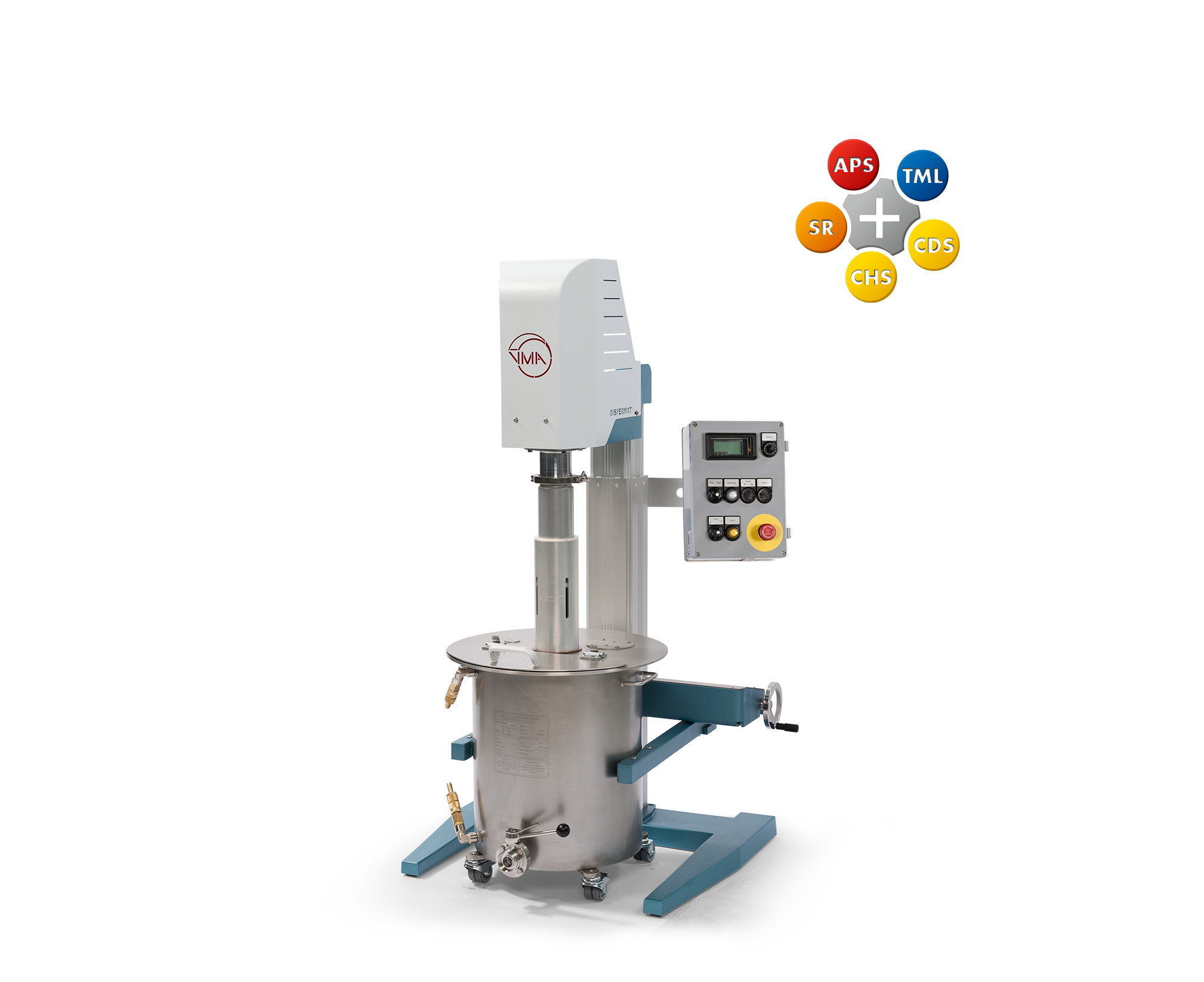

Innovation made in Germany: With the modular quick-change systems, the DISPERMAT® AE-EX dissolver can also be used as: APS Bead Mill, TORUSMILL® TML Basket Mill, CDS Vacuum Dispersion System, CHS Vacuum Dispersion System, SR Rotor-Stator Homogenizer and ASC Scraper System .
APS Bead Mill
Modular bead mill for DISPERMAT® dissolvers.
The addition of the modular APS bead mill converts the DISPERMAT® dissolver into a closed batch bead milling system.
APS Bead Mill

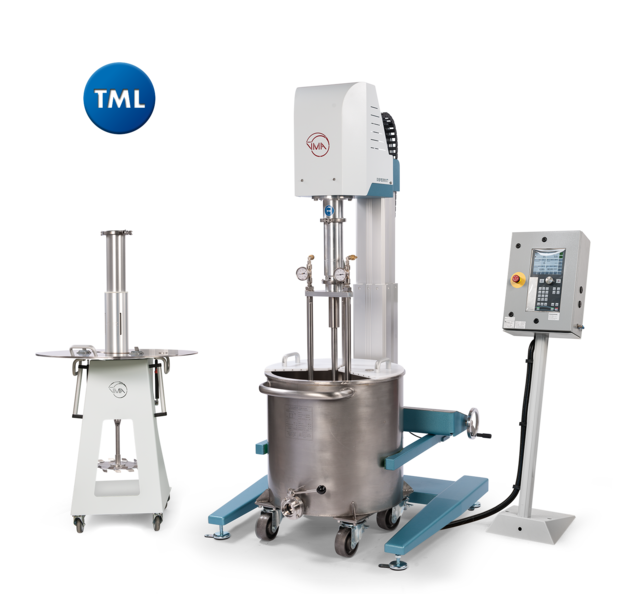

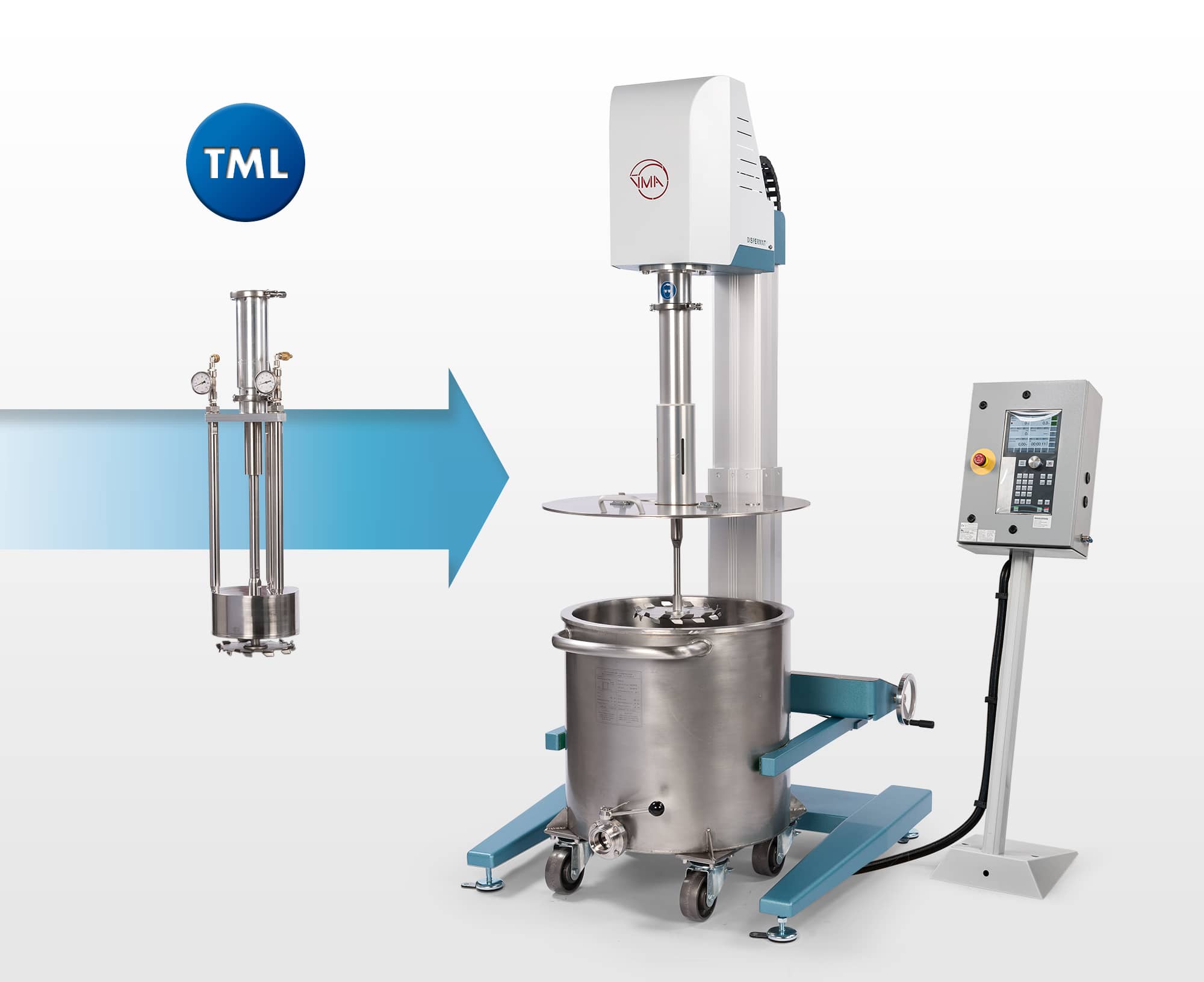

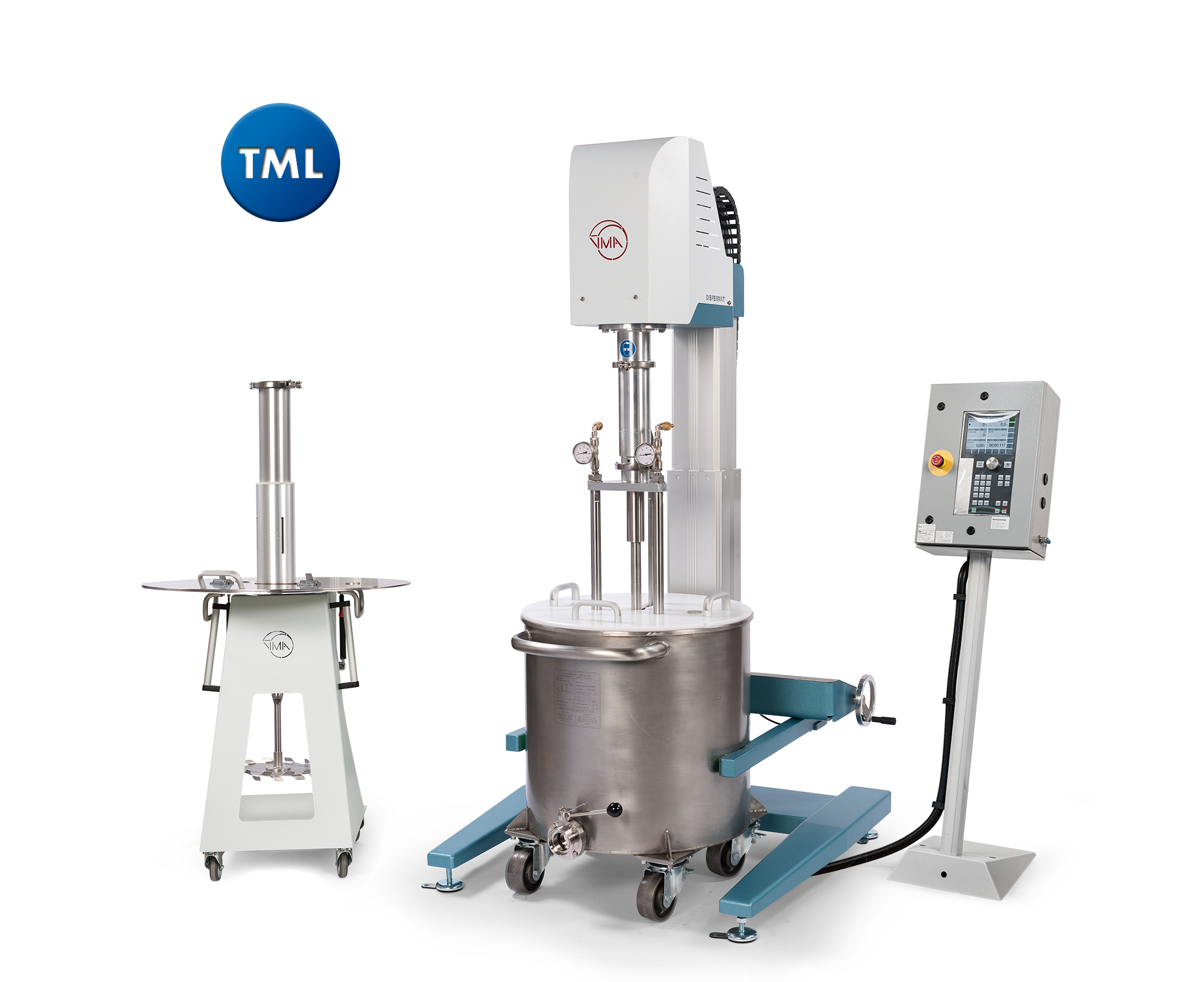

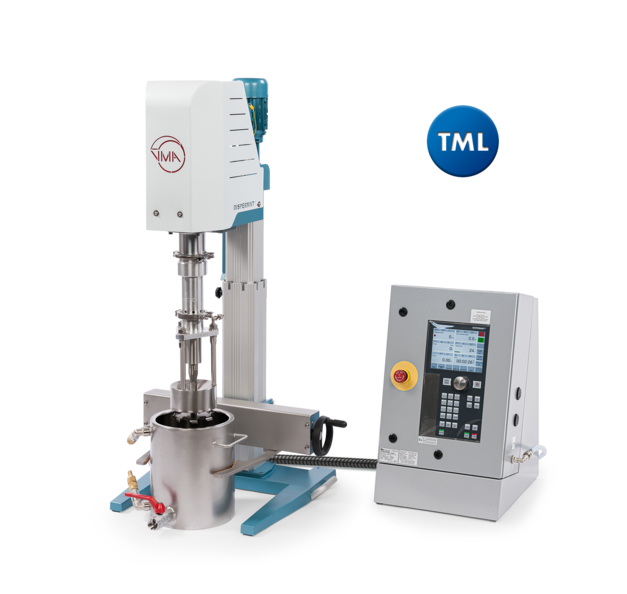

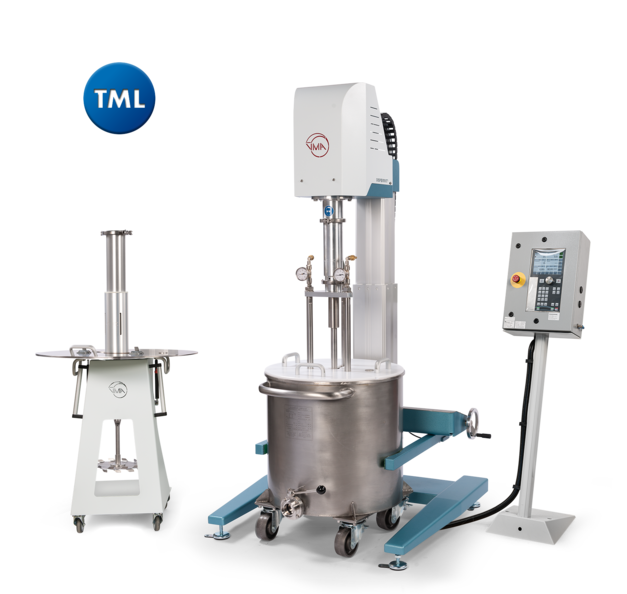

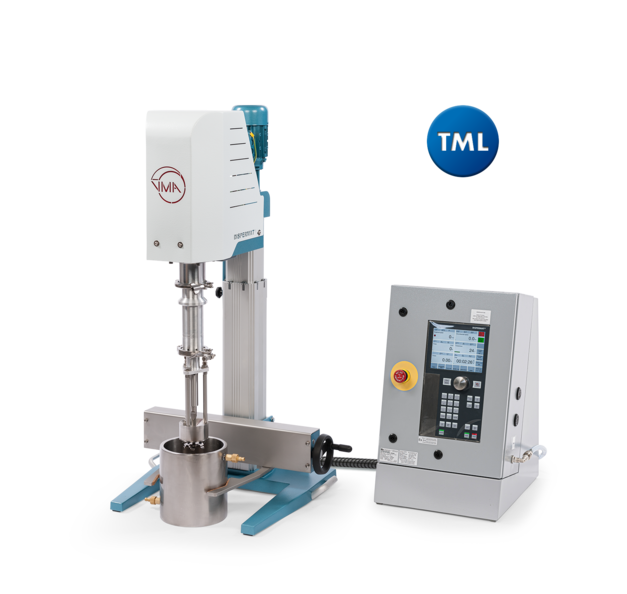

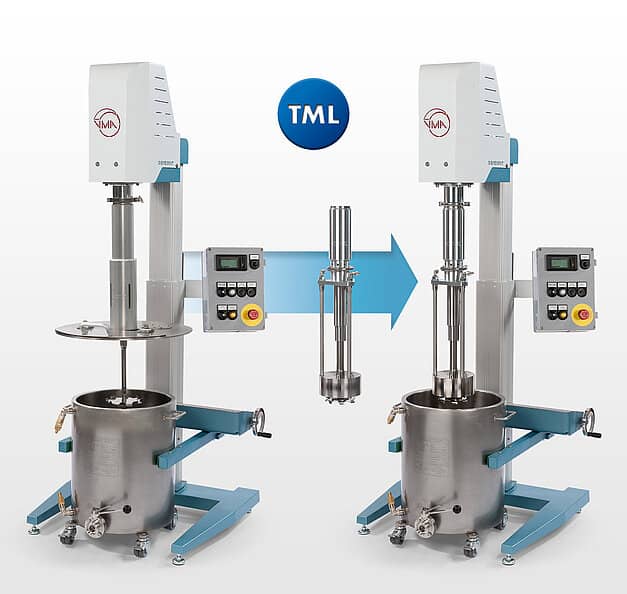

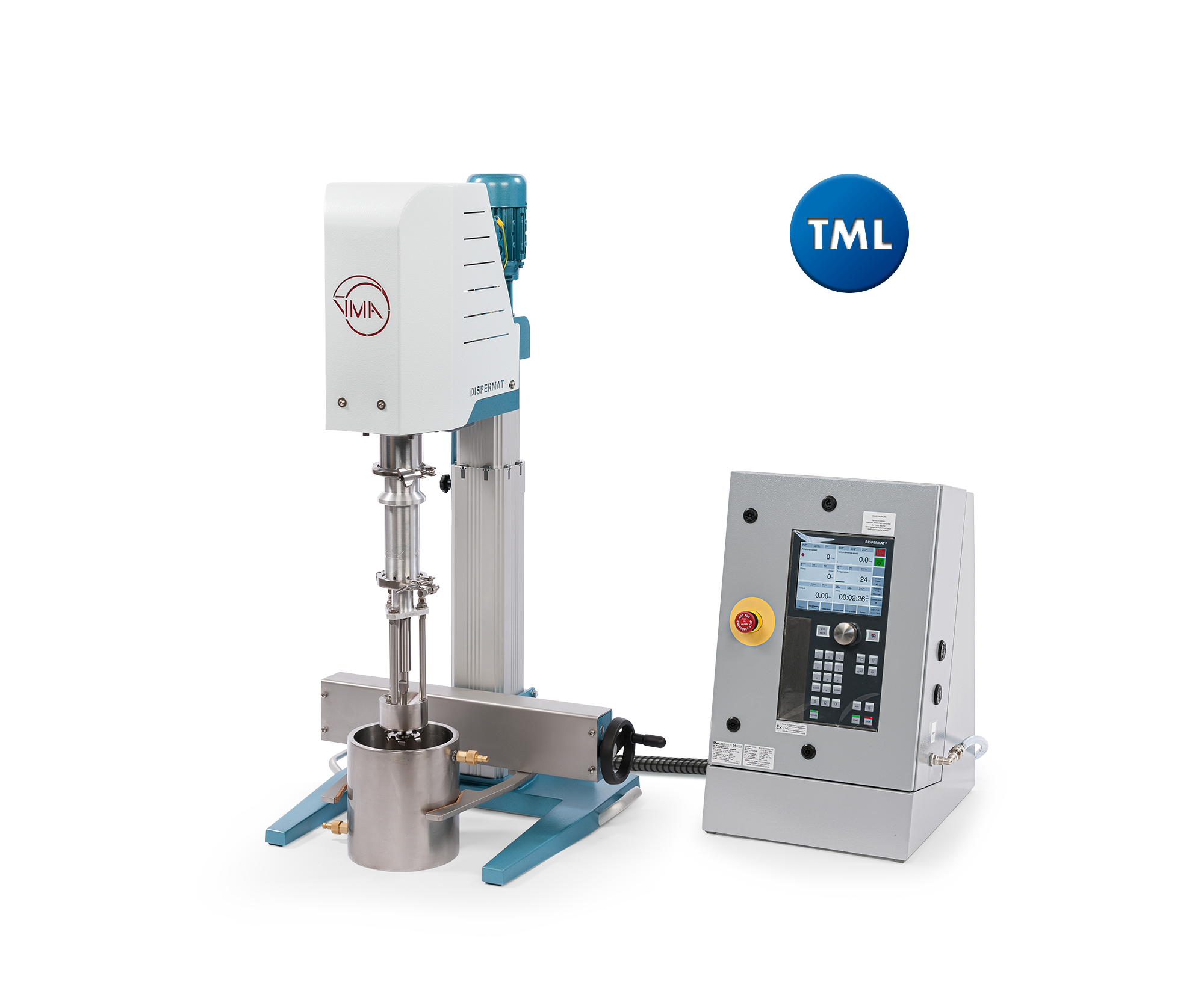

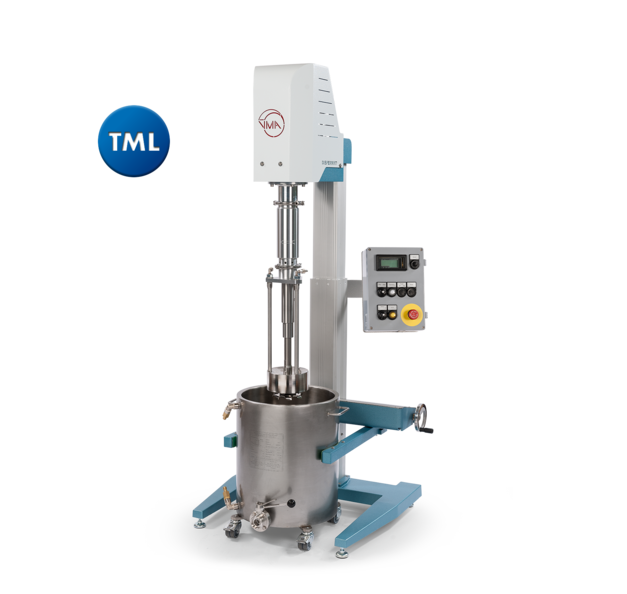

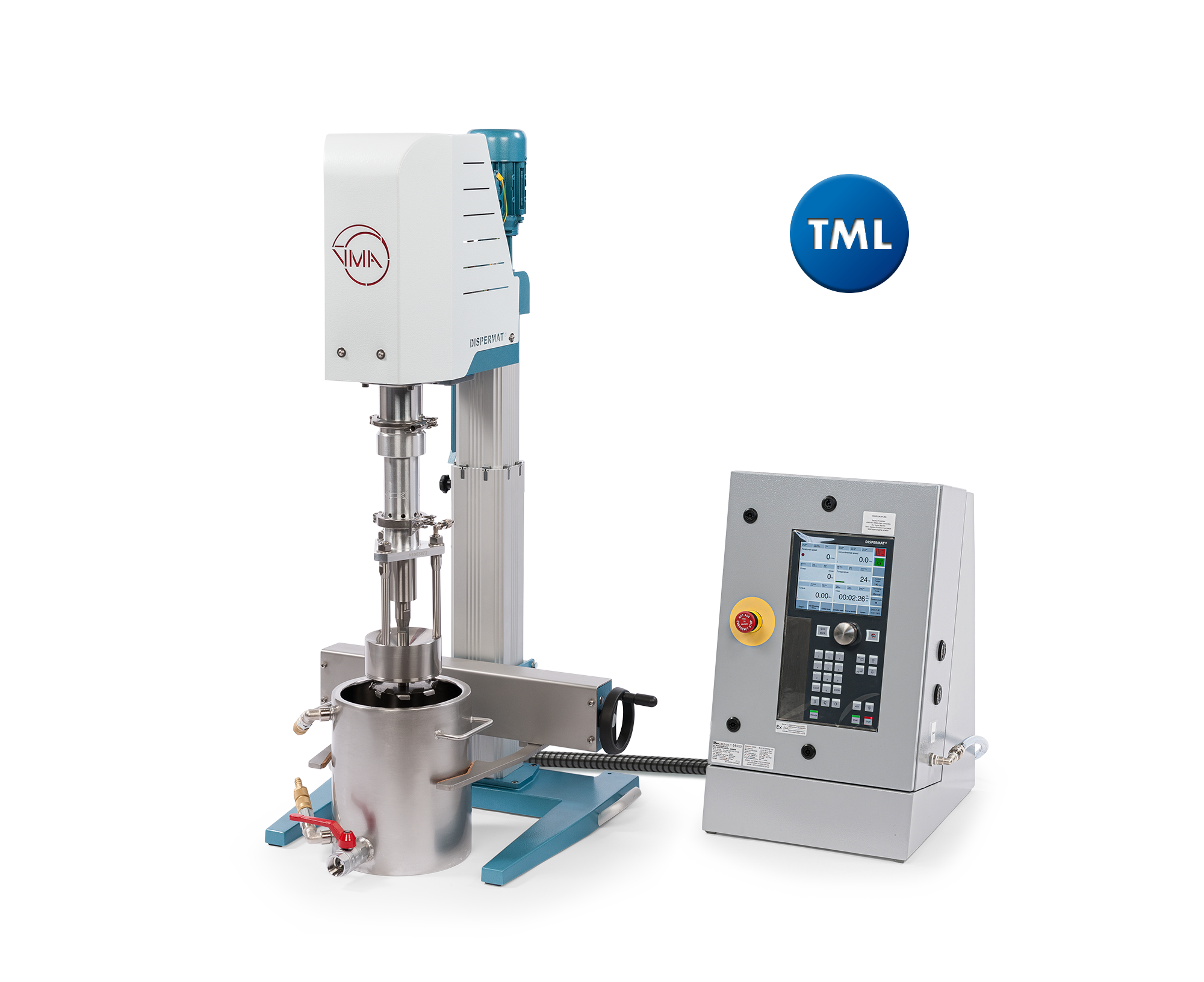

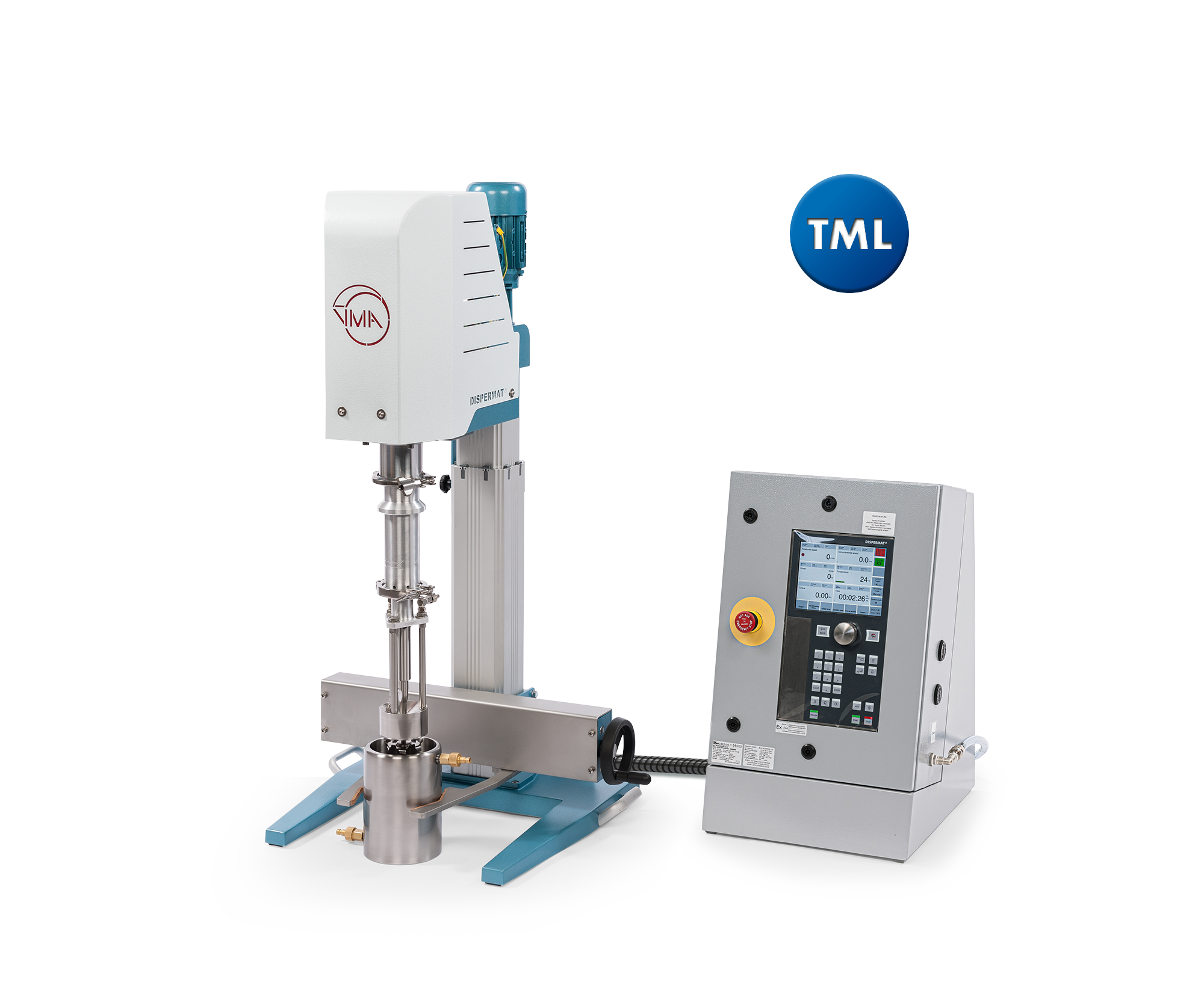

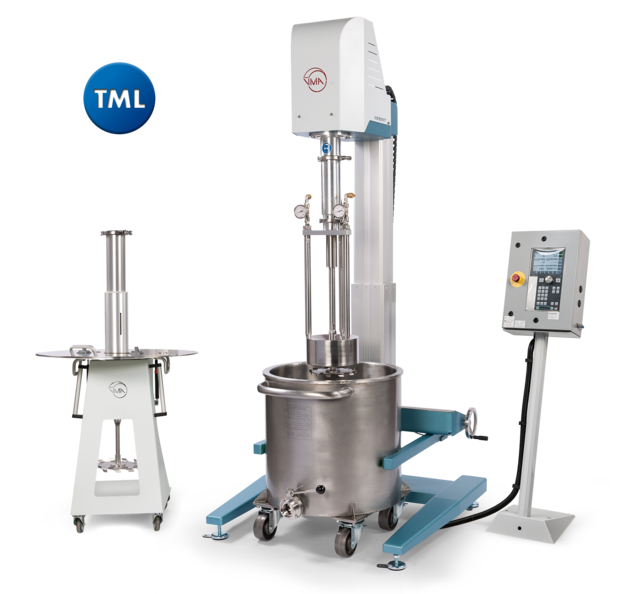

TORUSMILL® TML Basket Mill
Modular basket mill for DISPERMAT® dissolvers
The addition of the modular TML basket mill converts the DISPERMAT® dissolver into an extremely efficient fine grinding system.
TORUSMILL® TML Basket Mill
CDS Vacuum Dispersion System
Modular vacuum system for DISPERMAT® dissolvers
The CDS vacuum dispersion system enables the dispersion process in a completely closed system under vacuum.
CDS Vacuum Dispersion System

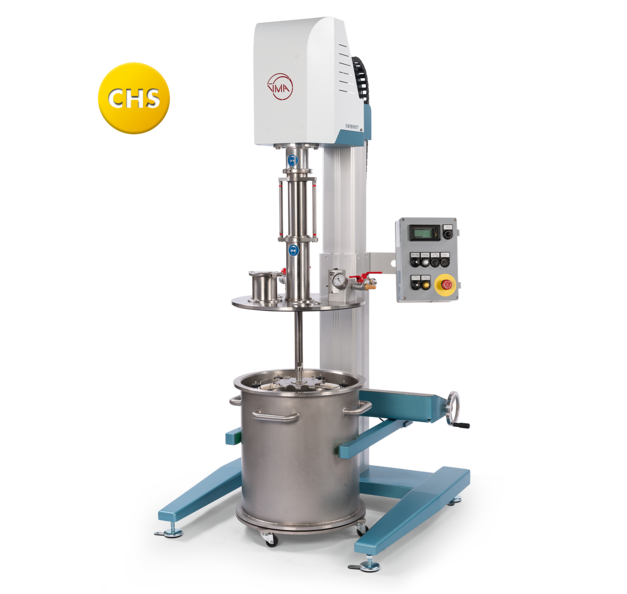

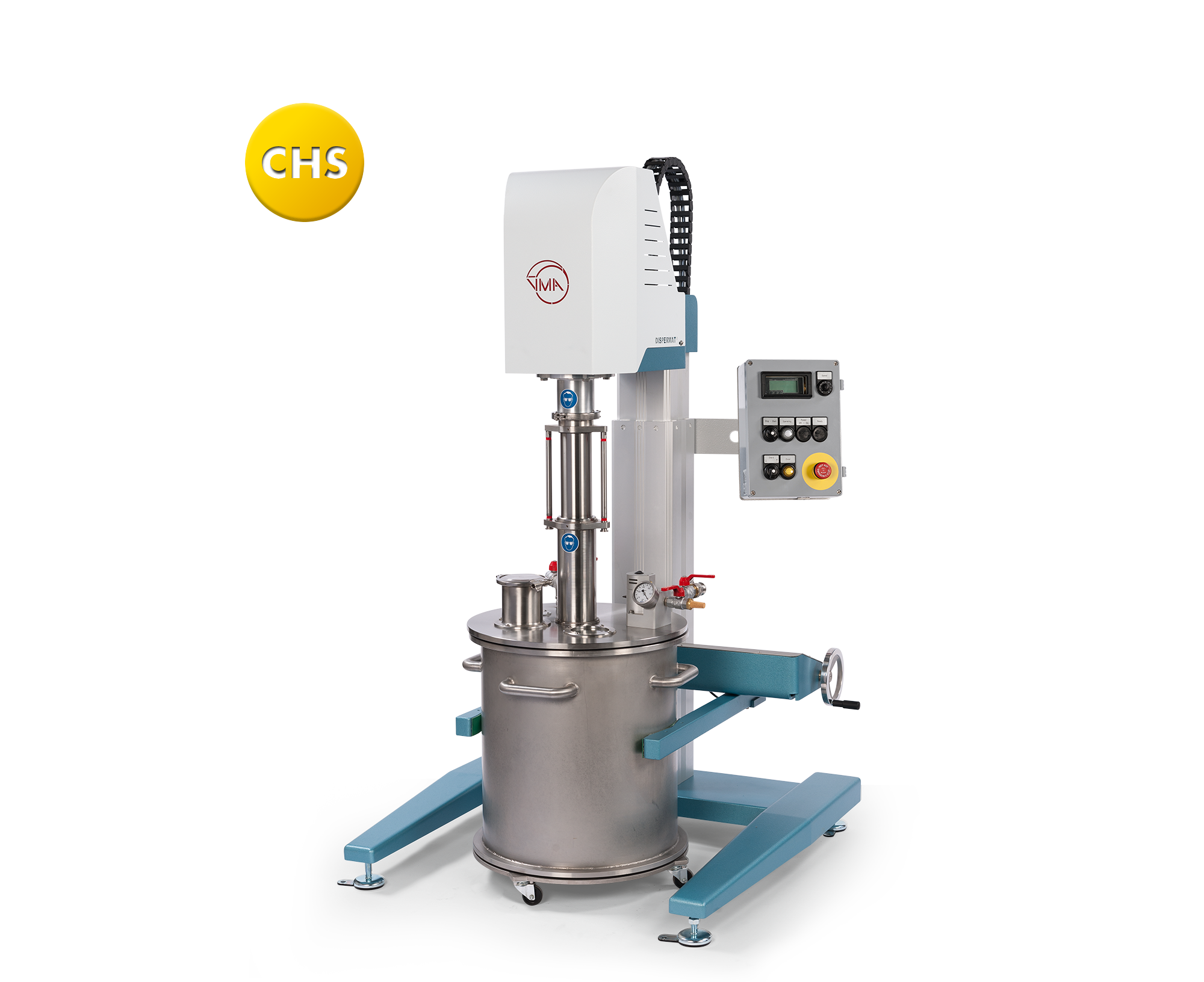

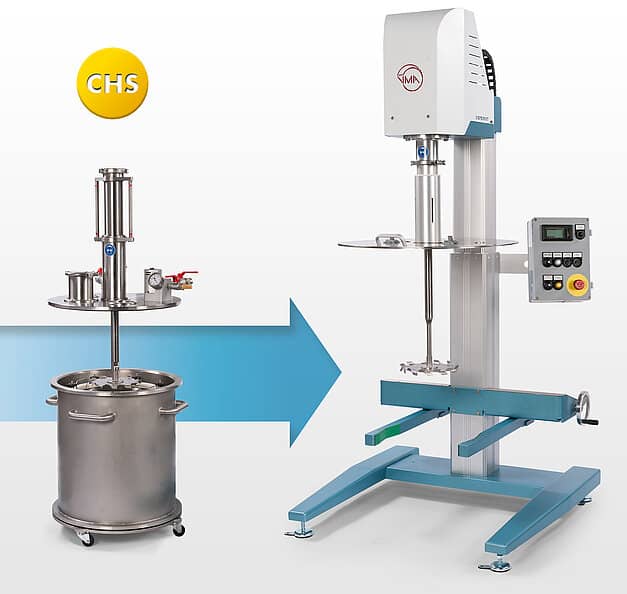

CHS Vacuum Dispersion System
Modular vacuum system with a mobile vacuum unit
Modular CHS vacuum dispersion system with a mobile vacuum chamber for single‒walled steel containers, hobbocks and customized dispersion containers.
CHS Vacuum Dispersion System
SR Rotor-Stator Homogenizer
Modular rotor-stator dispersion system
Vertical high-performance rotor-stator systems for homogenizing, emulsifying, dispersing, mixing and dissolving.
SR Rotor-Stator Homogenizer
ASC Scraper System
Modular scraper system for DISPERMAT® dissolvers
ASC scraper system for dispersing, stirring and mixing of high-viscosity and non-flowing substances.
ASC Scraper SystemAccessories
| DISPERMAT® | Dispersion containers | Dissolver discs Ø |
|---|---|---|
| Dissolver DISPERMAT® AE03-EX | 0.25 ‒ 25 litres | 40 ‒ 150 mm |
| Dissolver DISPERMAT® AE04-EX | 0.25 ‒ 25 litres | 40 ‒ 175 mm |
| Dissolver DISPERMAT® AE05-EX | 0.25 ‒ 25 litres | 60 ‒ 175 mm |
| Dissolver DISPERMAT® AE06-EX | 0.25 ‒ 25 litres | 60 ‒ 175 mm |
| Dissolver DISPERMAT® AE08-EX | 10 ‒ 100 litres | 70 ‒ 300 mm |
| Dissolver DISPERMAT® AE10-EX | 10 ‒ 100 litres | 80 ‒ 350 mm |
| Dissolver DISPERMAT® AE13-EX | 25 ‒ 250 litres | 100 ‒ 450 mm |
