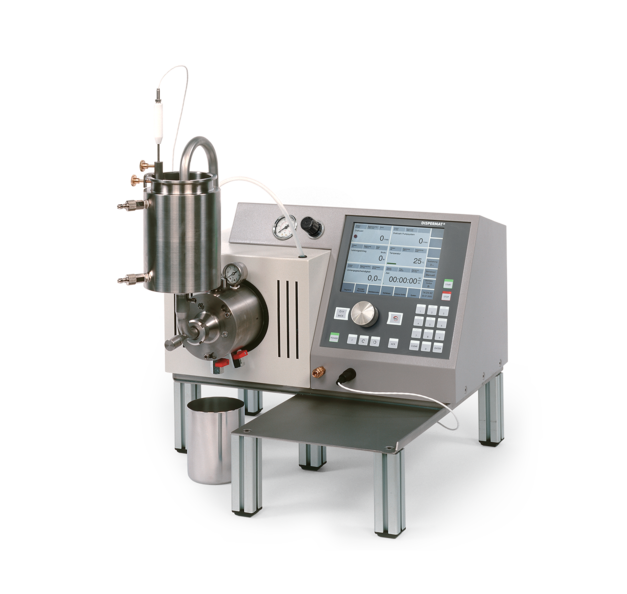

DISPERMAT® AS-C rotor-stator

Inline rotor‒stator homogenizer with C ‒ technology. Option: explosion‒protection according to ATEX

Power
1.1 kW
Product
10.6 litre/minute
Control
C [Comfort]

The DISPERMAT® AS-C is a rotor‒stator dispersion system. The DISPERMAT® AS-C rotor and stator consist of coaxially intertwined rings designed with narrow radial slots. The rotor runs at high‒speed across the more

Homogenizer with easily replaceable rotor‒stator systems

The DISPERMAT® AS-C is a rotor‒stator dispersion system. The DISPERMAT® AS-C rotor and stator consist of coaxially intertwined rings designed with narrow radial slots. The rotor runs at high‒speed across the stator. The substance to be dispersed is fed into the centre of the rotor‒stator system and centrifugally accelerated by the motion of the rotor. As it passes through the rotor‒stator dispersion head, the substance is dramatically accelerated both tangentially and radially. The high frequency shearing force and turbulent flow conditions ensure optimum dispersion and emulsifying action producing very fine droplets with a large effective surface area (e.g. oil/water or water/oil emulsions).

The high shear mixer has a mechanical seal with an integrated pressure system. All parts that are in contact with the product are made of stainless steel. Depending on the application, different rotor‒stator / gap combinations are available.

The DISPERMAT® AS-C continuously measures and displays the operating parameters such as dispersion power, speed, torque and the product temperature. The extensive process control makes the DISPERMAT® AS-C especially suitable for research and development applications.



Benefits of the innovative DISPERMAT® AS-C high shear mixer:

  • Mechanical seal with integrated pressure system
  • Pass through or circulation method
  • All parts which are in contact with the product are made of stainless steel
  • Simple handling
  • Easily changed rotor‒stator systems
  • Particularly easy cleaning
  • Process control by measuring and recording of speed, power input, torque, work, product temperature and circumferential speed of the rotor
  • Operating modes: constant speed or constant power
  • Documentation of measurement data with WINDISP© 7



Highlights DISPERMAT® AS-C rotor-stator

C‒TECHNOLOGY
<p>PROCESS CONTROL<br /> repeatable dispersion results</p>
DISPERWHEEL®
<p>SPEED ADJUSTMENT<br /> with rotary pulse encoder</p>
OPTION: ATEX
<p>ZONE 0/1/2<br /> explosion protection</p>
OPTION: WINDISP© 7
<p>SOFTWARE<br /> documentation, research and QA</p>
MADE IN GERMANY
<p>SINCE 1972<br /> quality, precision &amp; durable technology</p>

The DISPERMAT® AS-C rotor-stator homogenizer is fitted with the C technology

C technology

DISPERWHEEL® speed adjustment
infinitely variable speed  adjustment with rotary pulse encoder

Large color display
indications of speed, torque, power, product temperature, timer and peripheral speed

Repeatability
dispersion method: constant speed or constant mechanical power input for optimum repeatability, temperature‒based dispersing

Data recording
recording of the process parameters with graphical indication

Switch off parameters
switch off function for temperature, speed, torque and power

Database 100 individual PRESET configurations for speed, time, switch off parameters, ramp function, etc.

Power compensation
net power calibration

Connectivity
USB (Wi-Fi, LAN expected in 2022)

WINDISP 7©
data interface for WINDISP© 7 software for documentation, analysis, research, development and quality control
