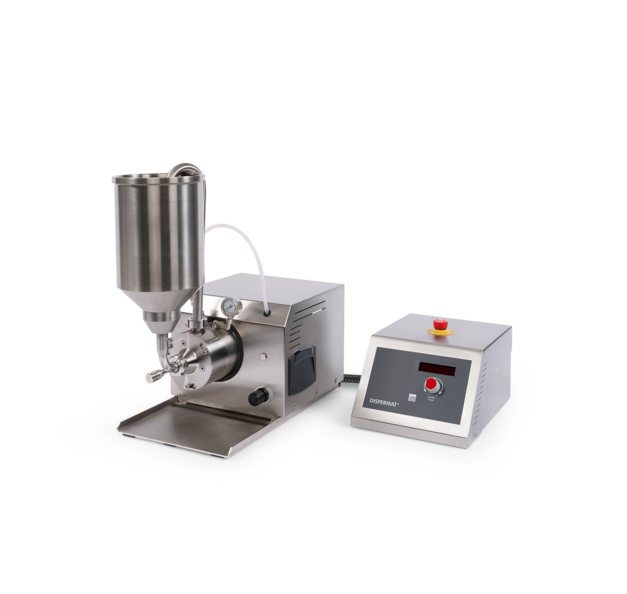

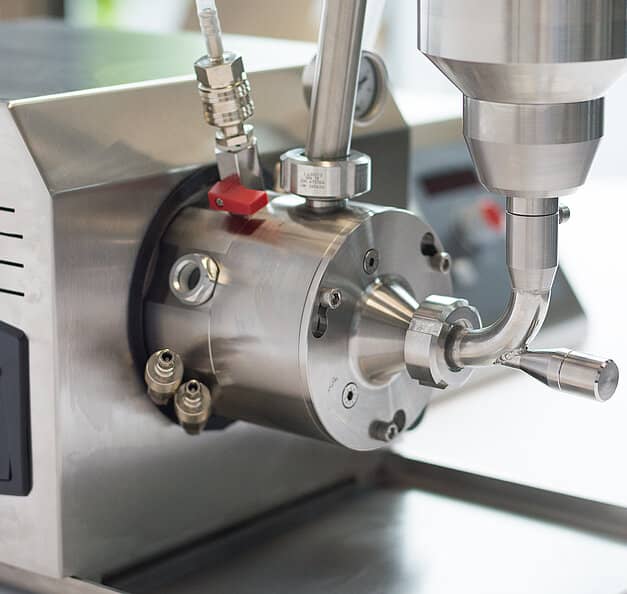

DISPERMAT® AS-B rotor-stator

Inline rotor‒stator homogenizer with LC ‒ technology. Option: explosion‒protection according to ATEX

Power
1.1 kW
Product
10.6 litre/minute
Control
LC [Basic]

The new very compact horizontal 5500 rpm homogenizer DISPERMAT® AS-B is based on the proven AS technology. The speed is infinitely adjustable due to the control which is fitted in a separate stainless steel more

Kompaktes Rotor‒Stator Dispergiersystem

The new very compact horizontal 5500 rpm homogenizer DISPERMAT® AS-B is based on the proven AS technology. The speed is infinitely adjustable due to the control which is fitted in a separate stainless steel housing. Torque and timer functions are displayed digitally.



Benefits of the DISPERMAT® AS-B high shear mixer:

  • Mechanical seal with integrated pressure system
  • Pass through or circulation method
  • All parts which are in contact with the product are made of stainless steel
  • Dispersion under pressure and vacuum
  • Simple handling
  • Easily changed rotor‒stator systems
  • Particularly easy cleaning



Highlights DISPERMAT® AS-B rotor-stator

OPTION: ATEX
<p>ZONE 0/1/2<br /> explosion protection</p>
MADE IN GERMANY
<p>SINCE 1972<br /> quality, precision &amp; durable technology</p>
DISPERMAT®
type
Power
kW
Speed
rpm
Peripheral speed
of the rotor, meter/second
Flow rate H2O
litre/minute
AS-B 1.1 0 – 6000 25 10.6

The DISPERMAT® AS-B rotor-stator homogenizer is fitted with the LC technology

LC technology

Speed adjustment
infinitely variable speed adjustment by advanced frequency converters

Timer
timer function with display of the pre‒selected time as well as the elapsed time

Foil keyboard
the splash water protected and solvent‒resistant wipe clean foil keyboard allows for a particularly ease of use

Digital indication
display for speed and timer device
